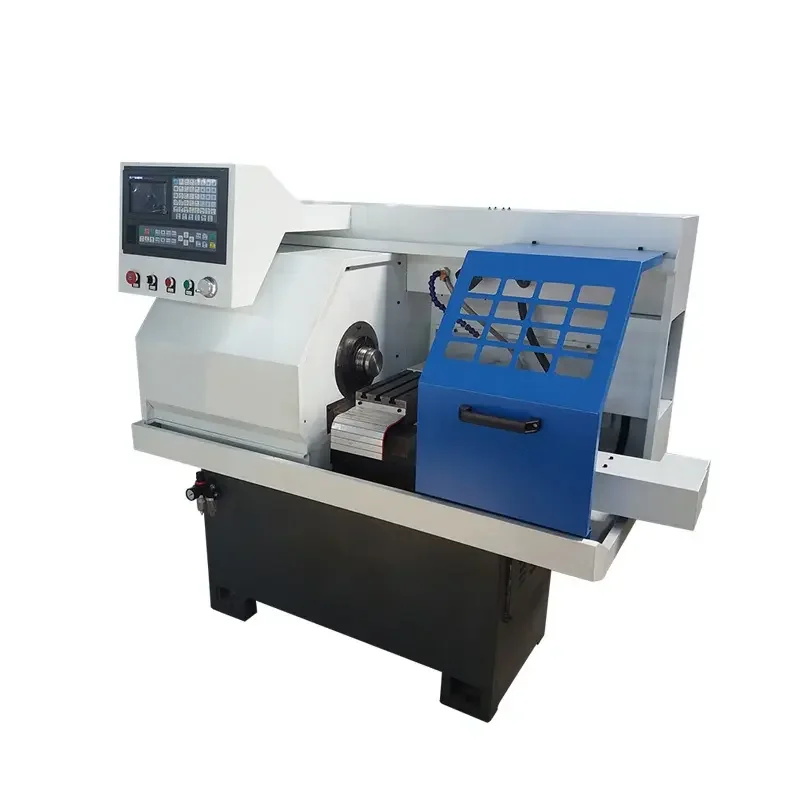

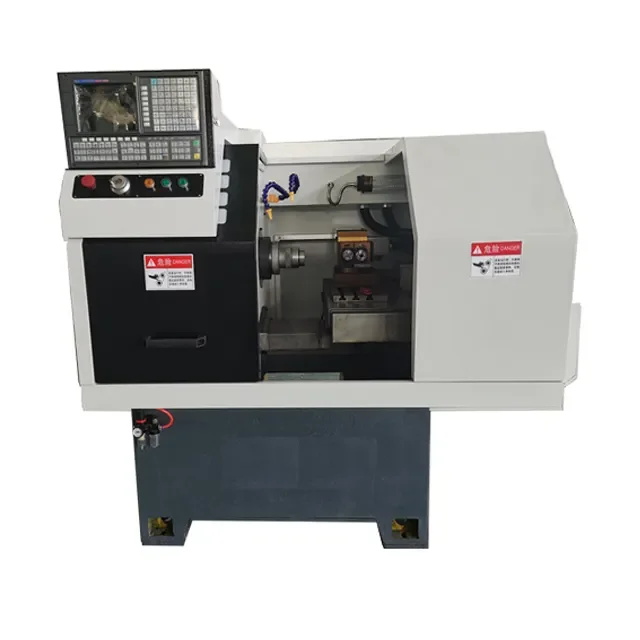

High Precision CNC Lathe Machine with Automatic Turning Center
The bed is made of high-rigidity cast iron with an integral casting structure, which is 30% more rigid and stable than the integral bed foot structure. It is molded with resin sand and has been treated with aging. High-precision and high-strength ball screws are used for feed in X and Z directions;high-efficiency arranging tools are used as standard, and the tool change efficiency is high. Four-station CNC vertical electric tool holders are optional, with high precision and stable rotation , No lifting action is simple and other features.
Model:
RY-CK0640
Function:
Turning
Input Voltage:
Custom Made
Spindle Power:
4KW
Overall size:
1850*1300*1600mm
Net weight:
1000KG

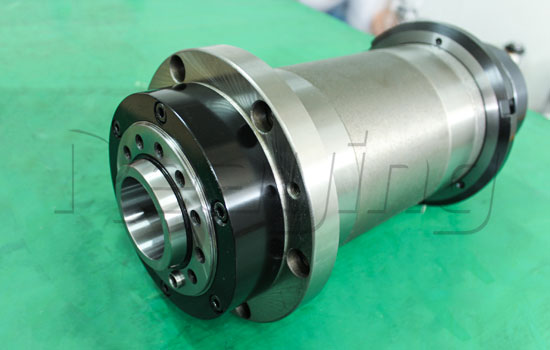

Spindle
High speed & rigidity spindle unitproviding high processing speedand accuracy

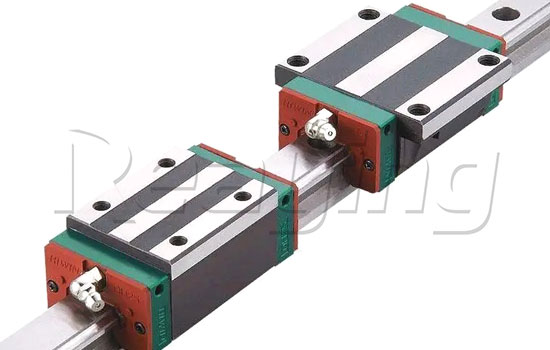

Guide Way/Ball Screw
Top brand linear guideway andball screw, providing high processingspeed and accuracy
Standard: hard guiderail, domesticball-screw;
Optional: TAIWAN guide rail andball screw

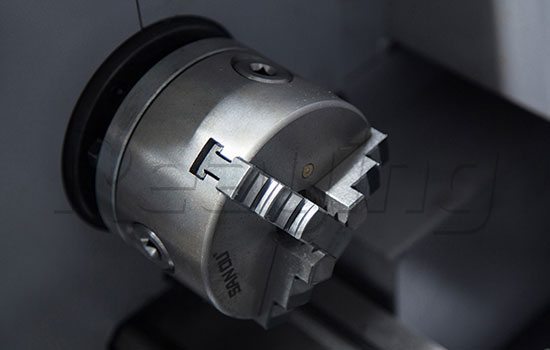

Clamping System
Standard: Pneumatic collet,providing high working speed andstrong clamping force
Optional: Hydraulic collet. 3-iawhollow manual/hydraulic chuck(size 160mm)

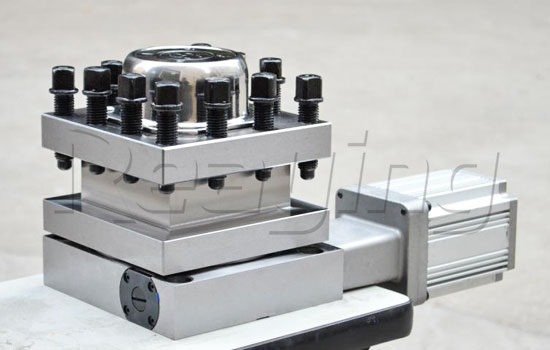

Tool Post
Standard: gang type tool holder
Optional: 4-tool electric turret,living tooling

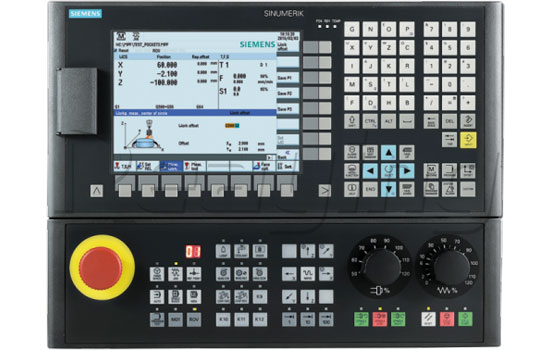

CNC Contral System
Standard: GSK
Optional: FANUC,SIEMENSSYNTEC,KND，WASHING
Technical Parameters
| Items | Model | Unit | CK0640 |
| Capability | Max. Swing over bed | mm | Φ320 |
| Max. Swing over cross slide | mm | Ф100 | |
| Maximum working length | mm | 350 | |
| Max length of work piece | mm | 400 | |
| Guideway width | mm | 260 | |
| Spindle | Spindle bore | mm | Ф48 |
| Diameter of through-hole of spindle drawpipe | mm | 41.5 | |
| Spindle speed | rpm | 100-3000 | |
| Thread of spindle drawpipe | / | M48*1.5 | |
| Spindle inner hole taper | / | 21° | |
| Spindle head type | / | A2-5 | |
| X axis travel | mm | 600 | |
| Z axis travel | mm | 220 | |
| The clamping mode of the work piece | mm | Pneumatic collet Optional:manual chuck/Pneumatic chuck/Hydraulic chuck |
|
| Chuck diameter | mm | 160 | |
| X/Z axis servo motor | Nm | 4/6 | |
| Pump power motor | w | 90 | |
| Main drive motor | kw | 4 | |
| Frequency changer | kw | 3.7 | |
| Repetitive positioning accuracy | mm | 0.005/0.005 | |
| Tools type | / | Row of knives (Optional four position tool) | |
| Machine tool lubrication system | - | Fully automatic gear lubricating oil pump | |
| Tool dimension | mm | 20*20 | |
| Others | Machine weight | kg | 1000 |
| Size(length × width × height) | mm | 1850*1300*1600 |
