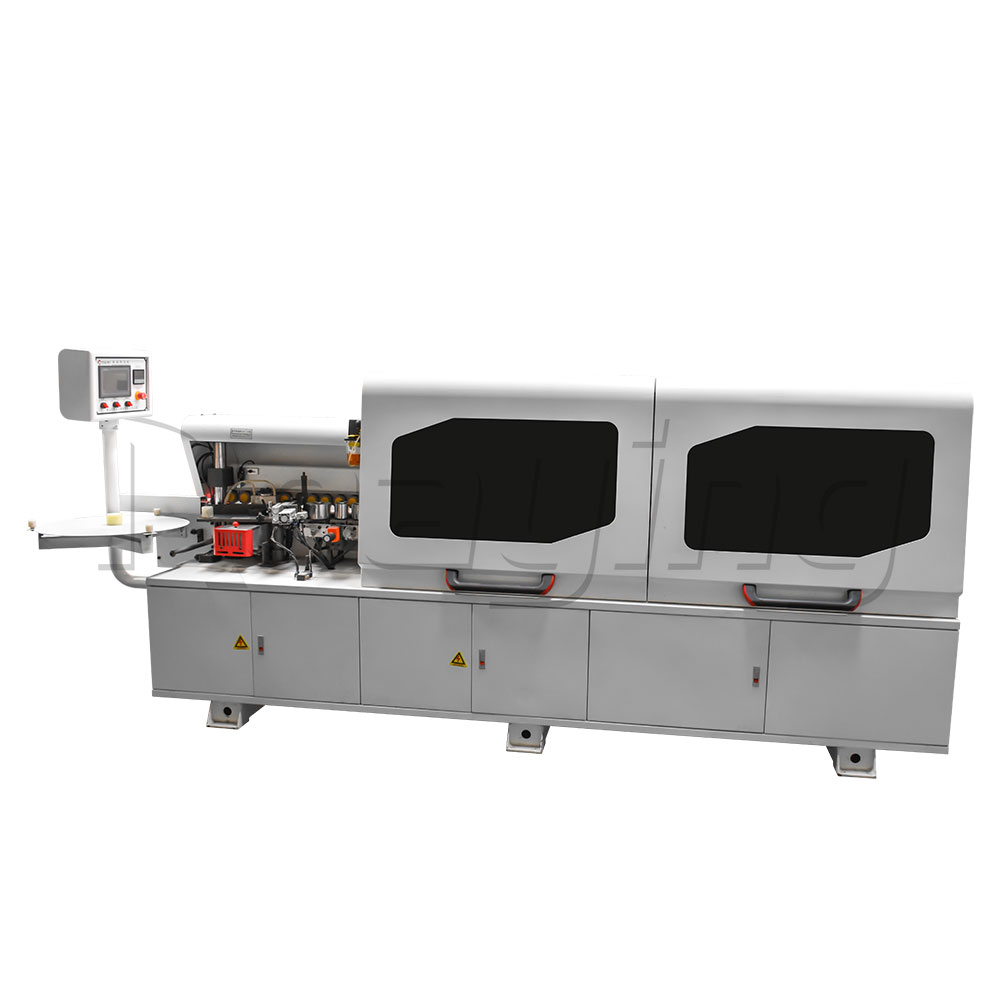

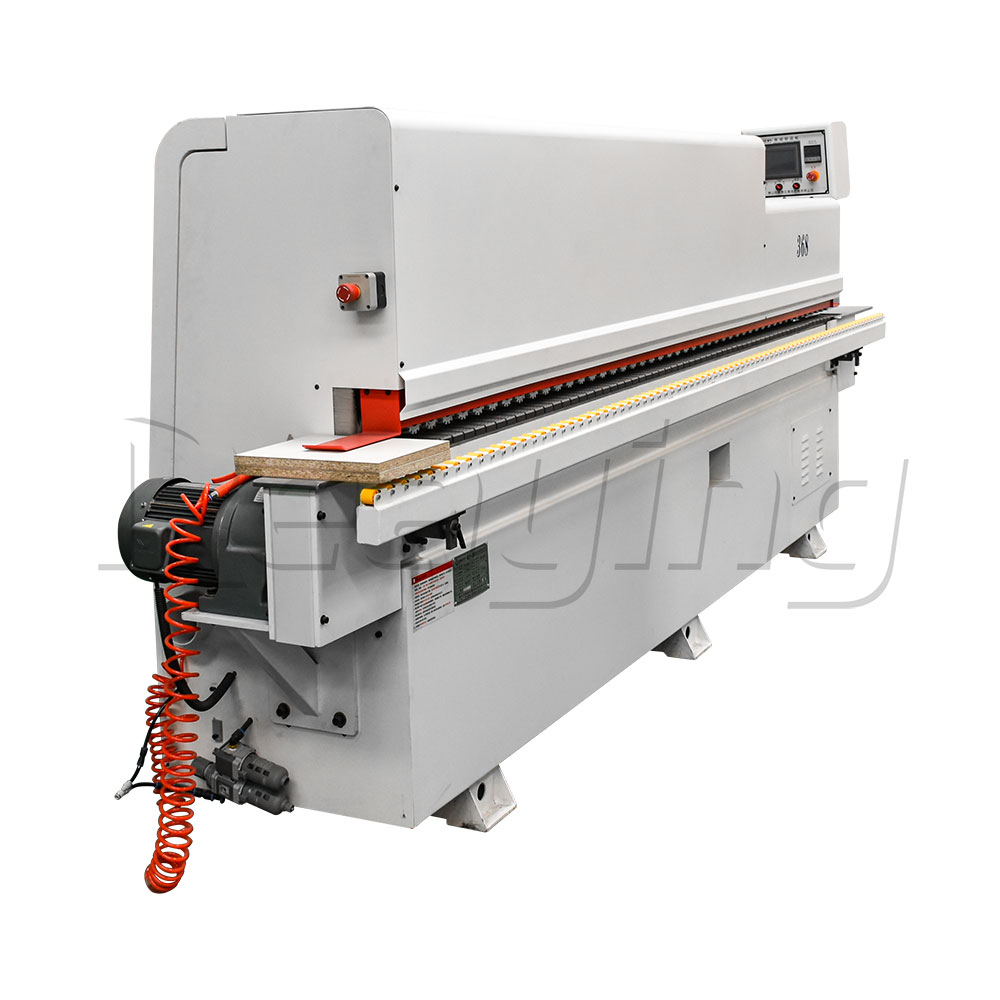

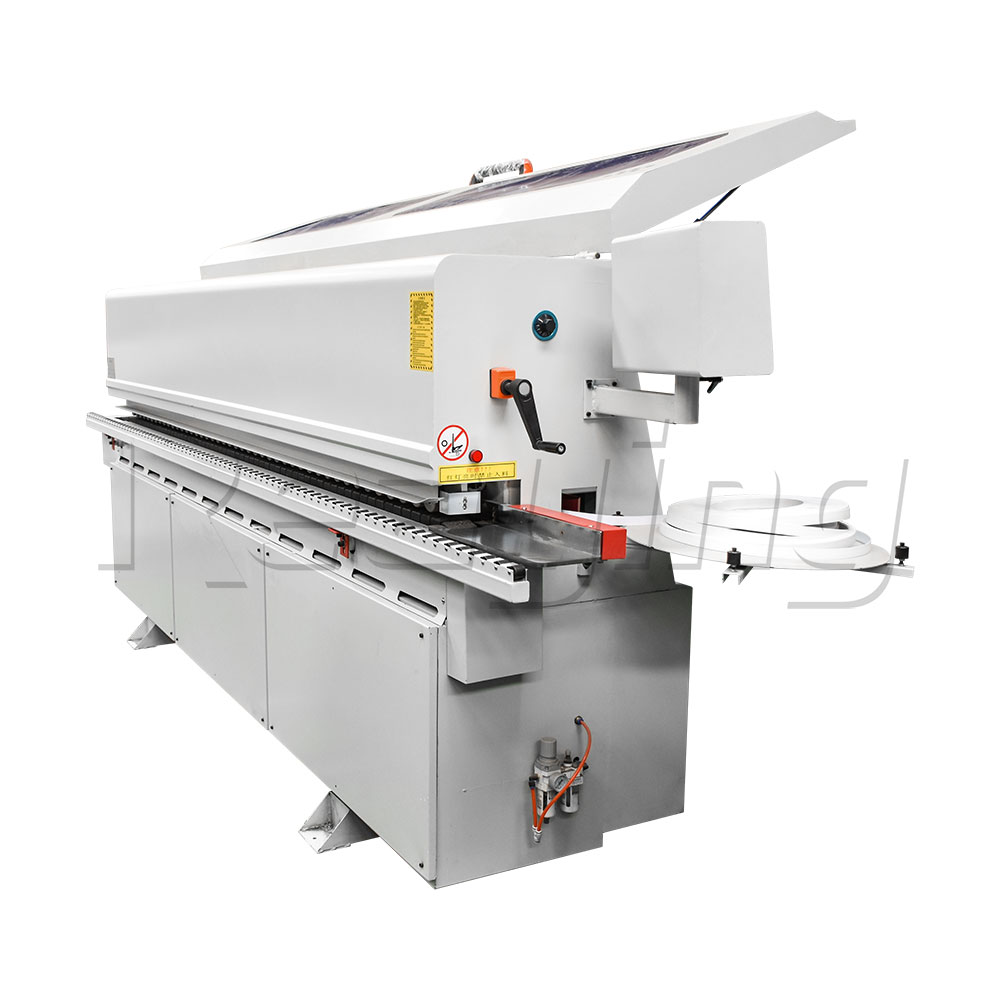

Full-automatic double trimming and edge banding machine

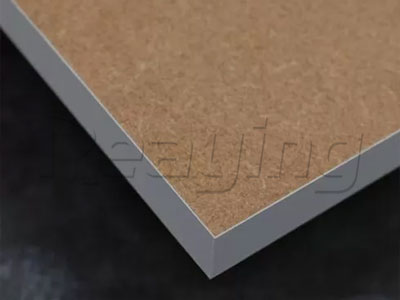

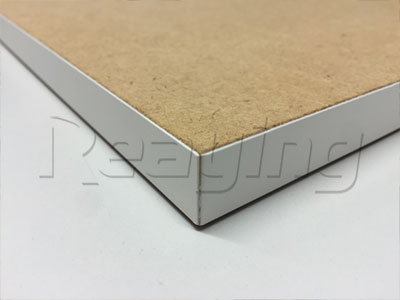

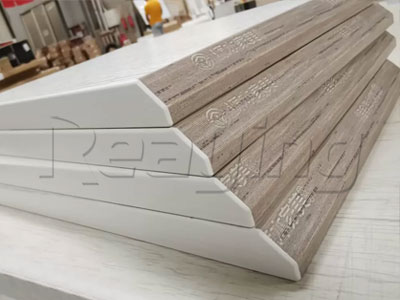

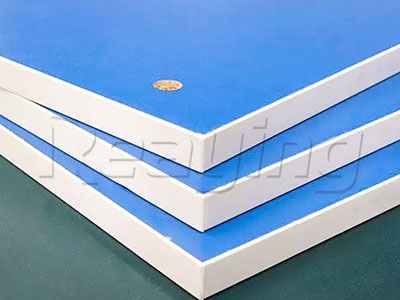

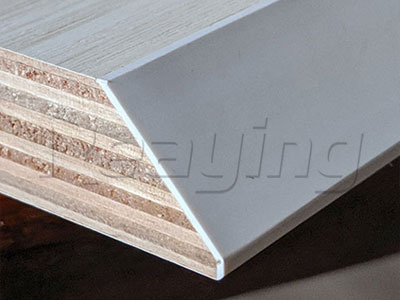

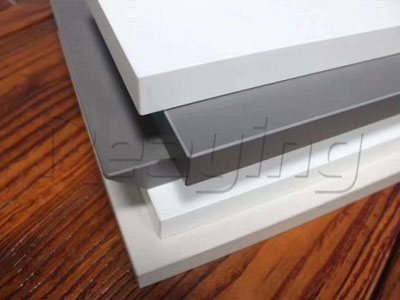

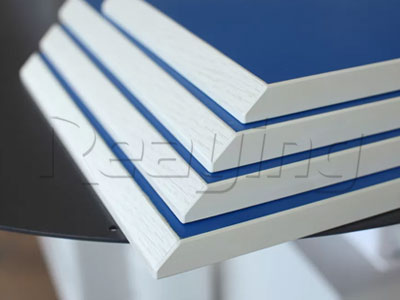

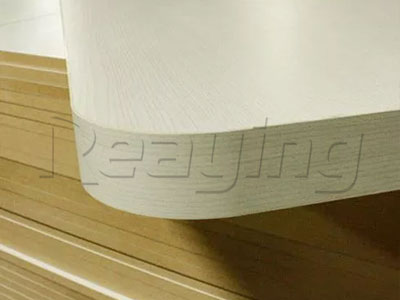

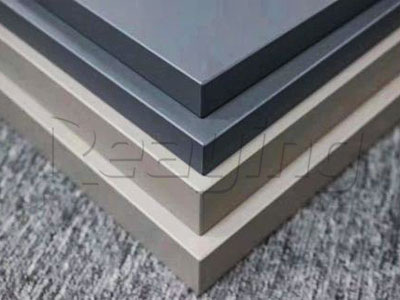

Full-automatic double trimming and edge banding machine is suitable for straight edge banding of solid wood, fiberboard, particleboard and other board workpieces. The edge banding materials can be solid wood strip, PVC, melamine, thin wood bark, etc. This machine is suitable for panel furniture, custom furniture and other woodworking industry, is an important part of the woodworking production line.
Model:
RY-20
Feed speed:
18-24m/min
Input Voltage:
Custom Made
Total Power:
8KW
Height of edge band:
8-50mm
Overall dimension:
4200*750*1600mm
Main Functions

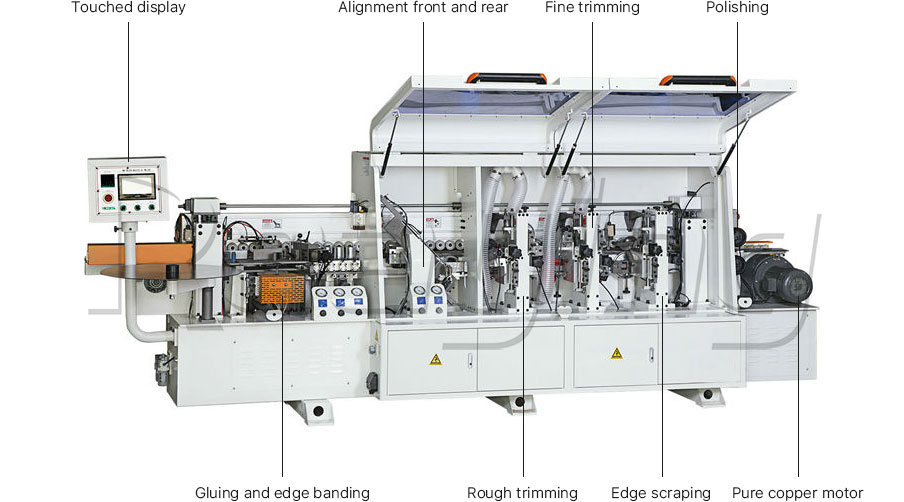

Preheating, gluing, pressing, belt cutting, front and back trimming, rough trimming, fine trimming, scraping, polishing.
Body Stability
The body adopts 16mm national standard high-strength steel plate table, and the exclusive welding process ensures the stability and deformation of the body.

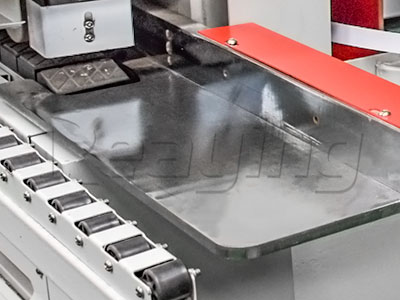

Conveyor Belt Guide Rail
The conveyor belt guide rail is made of PT220 material, which is wear-resistant and smooth without deformation.
Conveying Motor

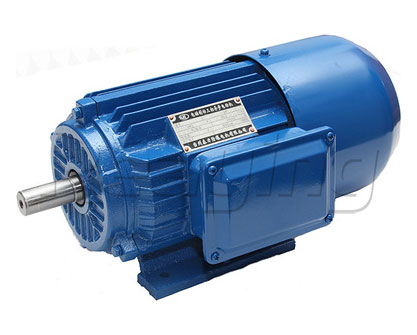

The conveying motor adopts Zhejiang TAILI brand, pure copper national standard, and the speed is stable.
High-speed Motors

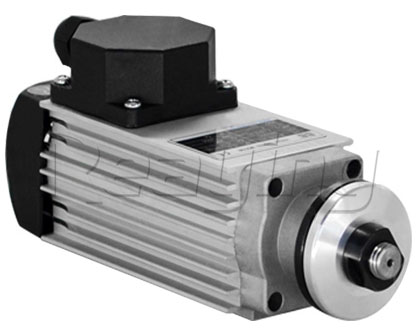

High-speed motors all adopt the well-known and reliable brand Haiyang Changchuan CC safety motors with high efficiency and stability
Flush Guide Rail

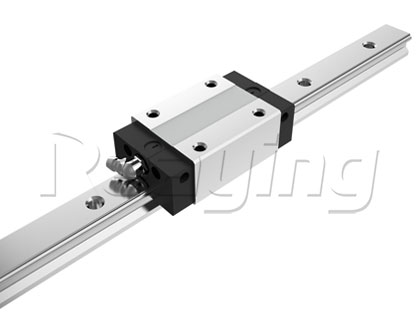

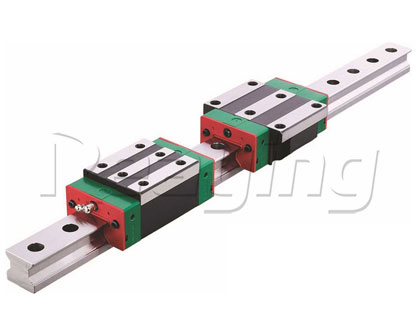

The flush guide rail adopts Taiwan HIWIN brand, which is stable and durable.
Air Circuit System

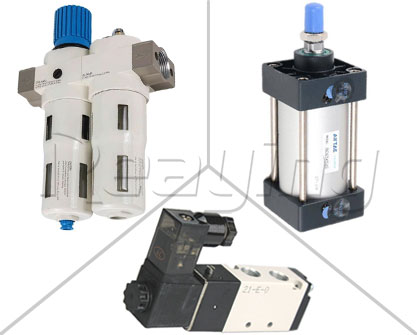

The air circuit system adopts Taiwan AIRTAC solenoid valve, Taiwan AIRTAC flush cylinder with magnetic ring induction switch, YIRI brand oil-water separator
Electrical System

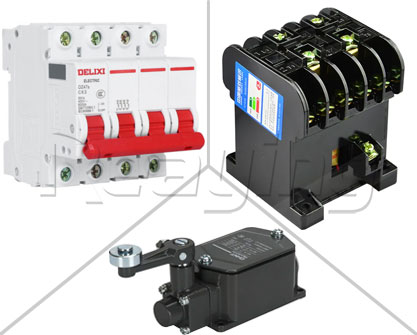

Electrical system, DELIXI brand air switch and contactor, CHINT brand travel switch
Exclusive Customization
The touch screen adopts Taiwan Delta PlC control system and touch screen. The frequency converter adopts the famous brand Guangzhou YUKONG brand.
Technical Parameters
| Total Power | 8KW |
|---|---|
| Overall dimension | 4200*750*1600mm |
| Weight | 790kg |
| Feed speed | 18-24m/min |
| The thickness of the tape | 0.3-3mm |
| Height of edge band | 8-50mm |
| Minimum length of workpiece | 70mm |
| Minimum width of workpiece | 60mm |
| Air pressure | 0.6MPa-0.8Mpa |
| Heating power of rubber box | 1.5Kw |
| Plate preheating power | 0.6Kw |
| Transmission power of rubber box | 0.55Kw |
| Conveyor belt motor power | 1.5Kw |
| Head trimming motor power | 0.55Kw * 2 12000r/min.200Hz |
| Rough repair motor power | 0.55Kw * 2 12000r/min.200Hz |
| Fine finishing motor power | 0.55Kw * 2 12000r/min.200Hz |
| Polishing motor power | 0.18Kw * 2 |
