Enclosed Fiber Laser Cutting Machine RY-L1530C With Exchange Table For Metal Sheet Cutting

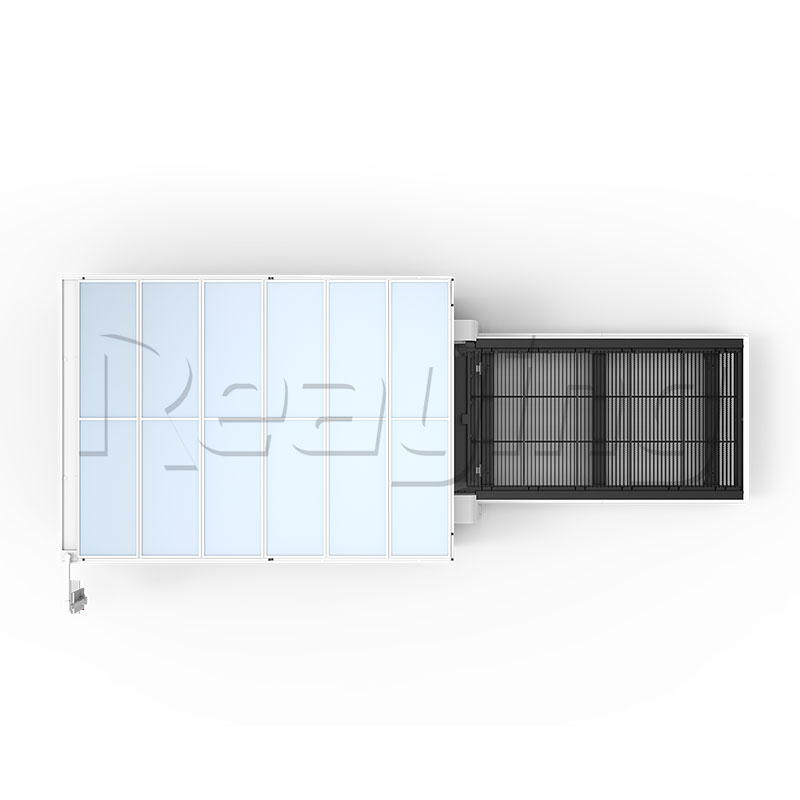

Fully enclosed fiber cutting machines are generally equipped with exchange tables system. The saftety enclosed fiber cutting machine with exchange platform is characterized by safety, high efficiency and time saving. When using A table to cut, B table can be used for loading and unloading metal sheets. After the A table is processed, it is exchanged with the B table, and the laser cutting machine can use the B table to continue processing. There is no need to wait for unloading and loading, which greatly saves standby time and improves work efficiency.
Model:
RY-L1530C
Function:
Cutting
Input Voltage:
Custom Made
Laser Power:
500W-25000W
Laser Source:
Genuines Raycus
Working Area:
1500*3000mm

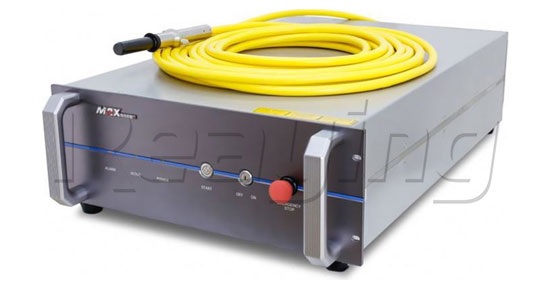

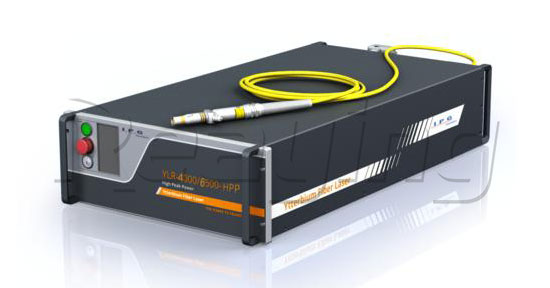

Laser Source
The best performed and the most famous laser source in China. The laser source lifetime is more than 100,000 hours and almost free maintenance for life.

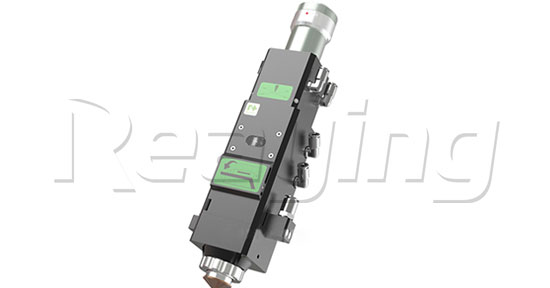

Laser Head
Famous laser head for metal cutting. Easy to operate and with nice working performance.
Control System
Domestic famous control system for metal cutting.Working stability, widely used and ease operate.

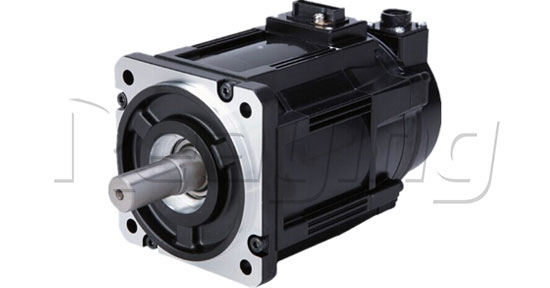

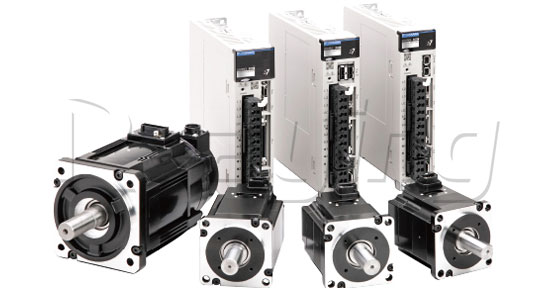

Servo Driver and Motors
Famous servo driver and motors in the world, and widely used in the industry machine. With its stability and working accuracy.

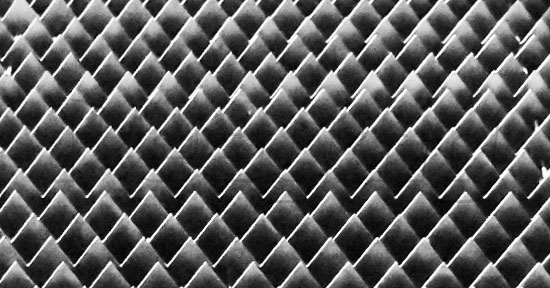

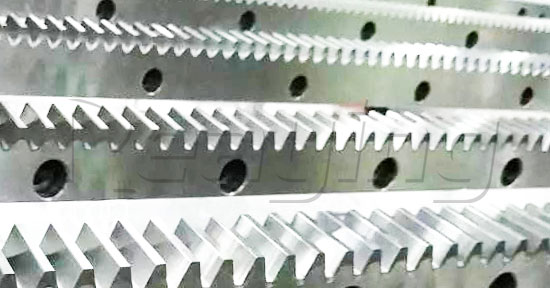

Sawtooth Worktable
Equipped with sawtooth worktable, to put and down heavy metal easier, and to keep materials and products clean enough.
Double driver Rail Guide and Gear
With double drive square rail guide and gears, to keep the machine working stability and accuracy.

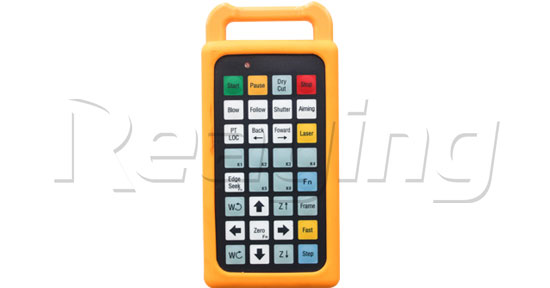

DSP controller
DSP controller is clear and easy to operate, even there is some distance from the fiber cutting machine.

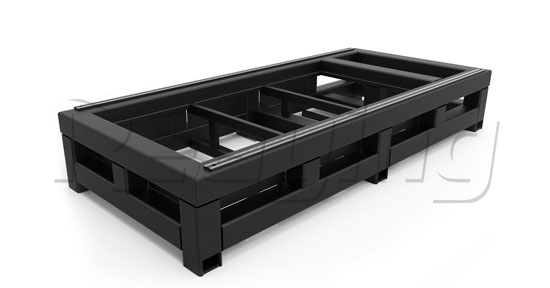

Machine Lathe
The lathe is founded by high-quality steel that ensures the high stability ,all the three axises are using imported straight-quadrate rails.
Technical Parameters
| Model | RY-L1325C |
|---|---|
| Laser Power | 500W-25000W |
| Working Area | 1300*2500 mm |
| Laser Type | Raycus (IPG / Nlight) Fiber laser source is optional |
| Laser Wavelength | 1064nm |
| Positioning Accuracy | ≤ ±0.025mm/m |
| Re-positioning Accuracy | ≤±0.02mm/m |
| Graphic Format Supported | BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc. |
| Warranty | 5 YEARS |
