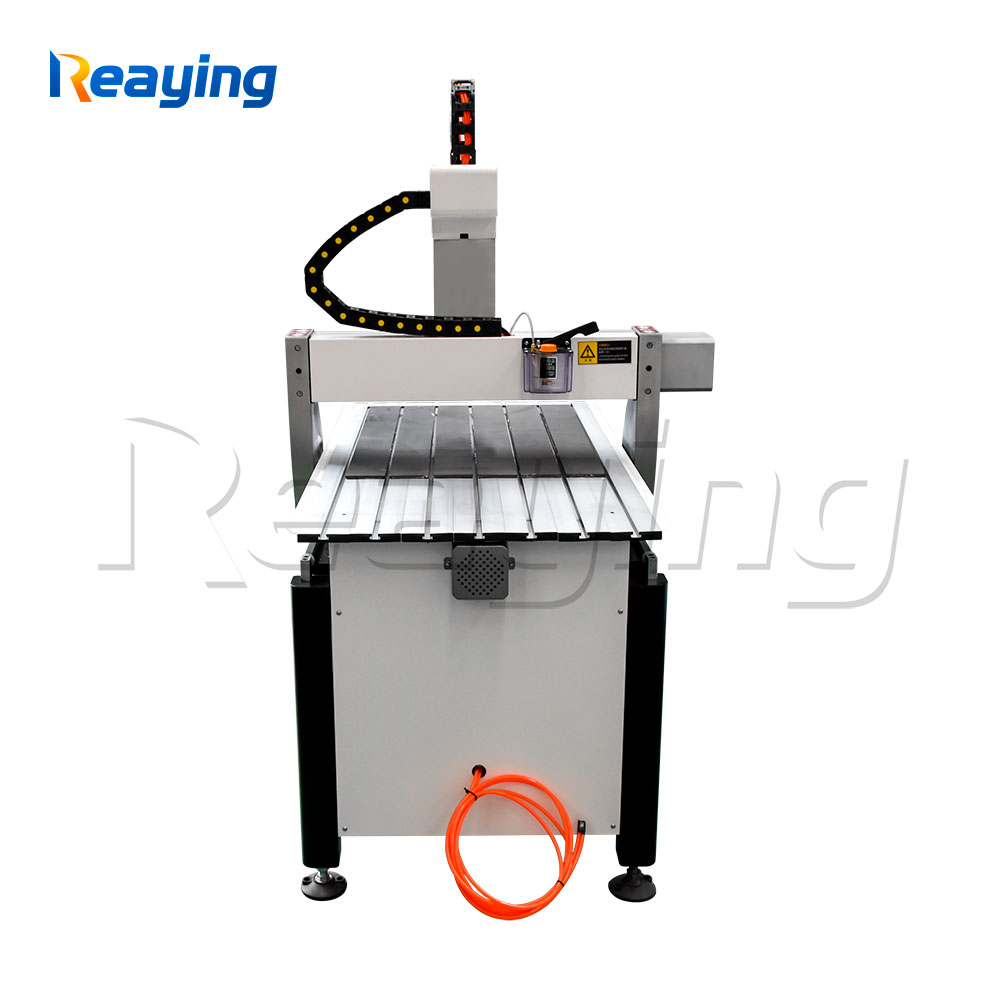

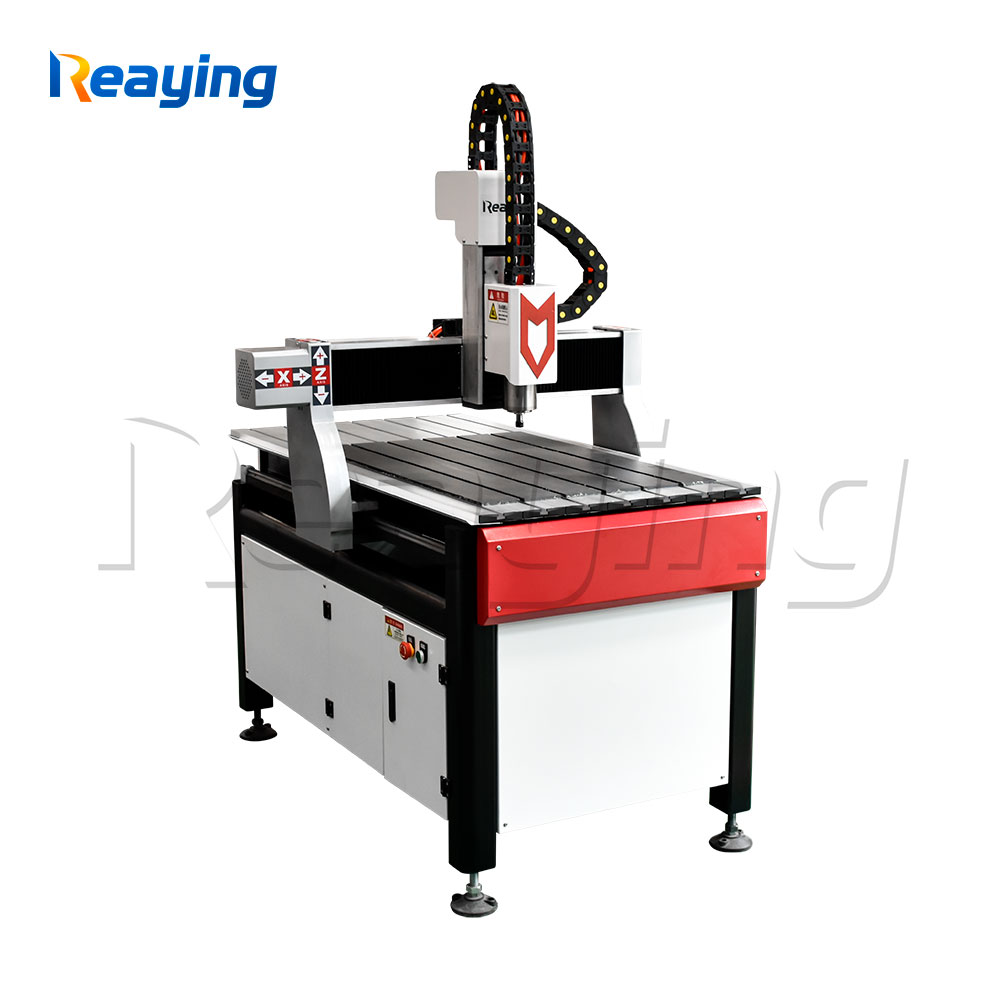

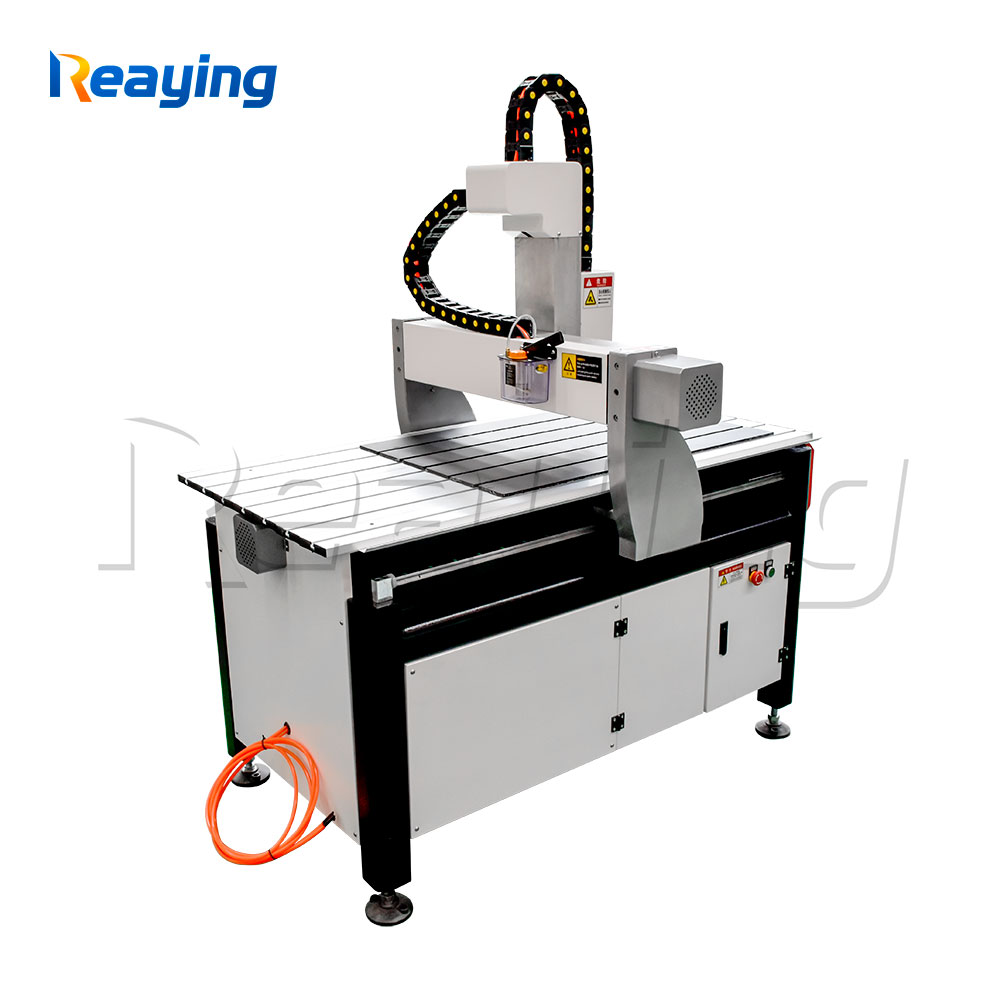

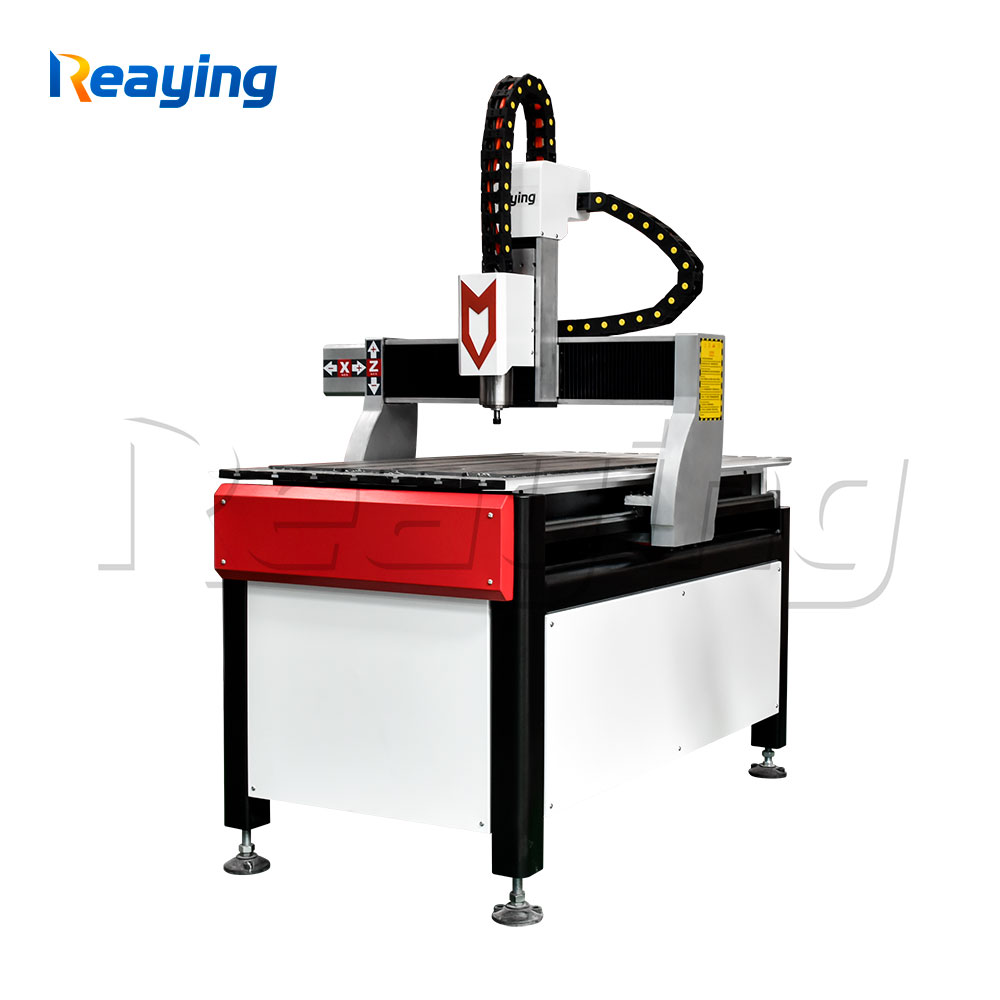

Cost-effective Mini Desktop Cnc Router Wood Engraving Carving Machine 6090
RY-C6090 mini CNC Router machine is a model suitable for DIY enthusiasts. It has high cost performance, small size, high processing accuracy, and a wide processing range. It can process all kinds of wood, metal, stone, acrylic, PVC, ABS and other materials.
Model:
RY-C6090
Function:
Engraving & Cutting
Input Voltage:
Custom Made
Spindle Power:
3KW
Spindle Type:
Air Cooling/ Water Cooling
Working Area:
600*900mm

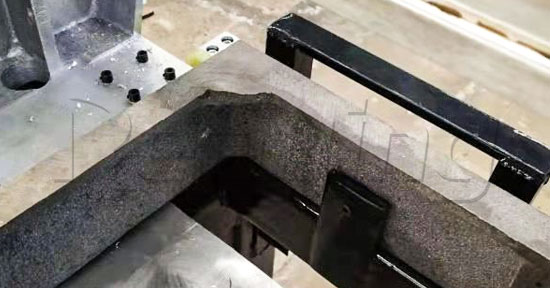

Machine frame
Adopted seamless welding bed, cast iron table top, cast aluminum gantry. This structure is more stronger, durable and not easy to deform, laying a solid foundation for stable operation of the equipment.

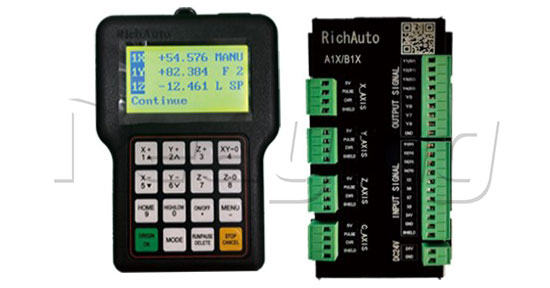

RICHAUTO DSP A11E controller
1. DSP operation core, with fast operation speed and strong processing ability.
2. 16 button hand-held operation, easy to train and operate
3. Equipped with screen display to realize full offline operation
4. Built in storage space, supporting USB flash disk reading
5. Standby USB flash disk mode function, supporting direct connection with the computer
6. 8 pairs of I/O ports can be customized
7. Support G code, PLT, DXF format files generated by various CAD/CAM software
8. Multi coordinate system memory function, supporting 9 workpiece coordinate systems,
9. Intelligent pre reading of documents to improve processing efficiency
10. Intelligent memory supports breakpoint, power failure and continuous machining
11. Parameter backup and recovery function
12. Two operation modes to ensure quality and efficiency
13. Safety pre inspection and alarm to ensure safe production
14. More convenient encryption and decryption function, no longer worry about forgetting the password
15. Support remote maintenance and system upgrade
16. Multi language display, free switching

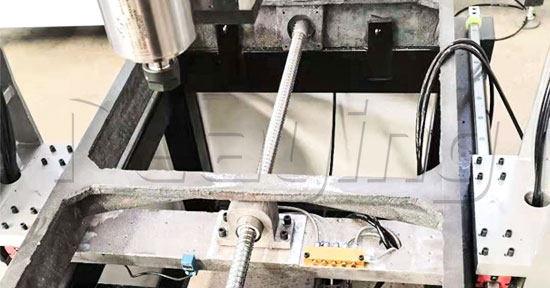

Drive system
The mute ball screw is used with double linear guide rail to ensure higher processing accuracy, more stability and more durability of the equipment.

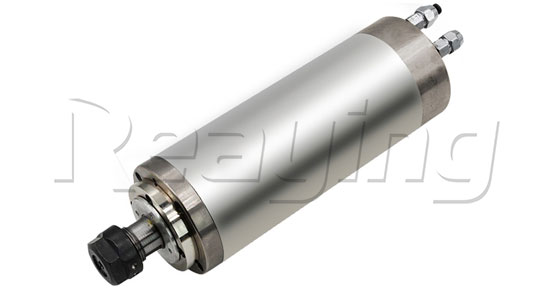

Water cooling spindle
Selected the 1.5KW water-cooled spindle, the maximum speed can reach 24000rpm. Smooth running, low noise, safe, reliable and long lifetime.

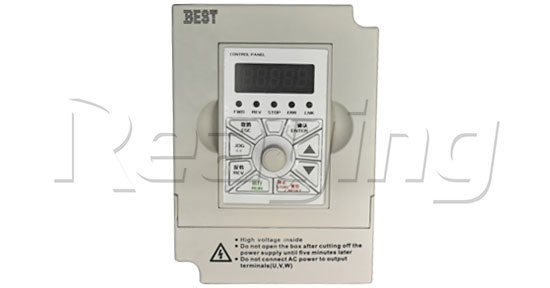

Frequency inverter
With BEST brand frequency inverter, it has strong anti-interference ability, overvoltage, undervoltage, overcurrent, overload, overheating, phase loss protection, and can display parameter setting, status information, fault code and other information in real time.

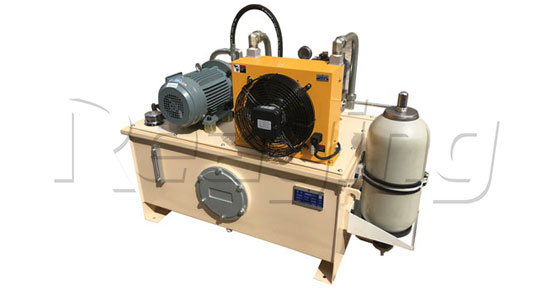

Optional cooling system and water tank
In addition to wood, if you also need to process stone and metal, you can choose cooling system and water tank, which is more convenient for your use and operation.
Technical Parameters
| Model | RY-C6090 |
|---|---|
| Frame | Seamless welding bed, cast iron table top, cast aluminum gantry |
| Spindle power | 1.5KW |
| Spindle brand | HQD brand |
| Frequency inverter | BEST brand |
| Rpm | 24000 |
| Working area | 600x900x200mm |
| Control system | RICHAUTO DSP A11E controller |
| Drive system | Ball screw and double liner guide |
| Cooling method | Water cooling |
| Motor | HH-MOTOR brand stepper motor |
| Running speed | 8,000mm/min |
| Voltage | 220 single phase/380V, 3Phase, 50/60Hz |
| Package size | 1550*1150*1650mm, 300kg |
| Optional accessories | Water tank and cooling system, rotary device |
