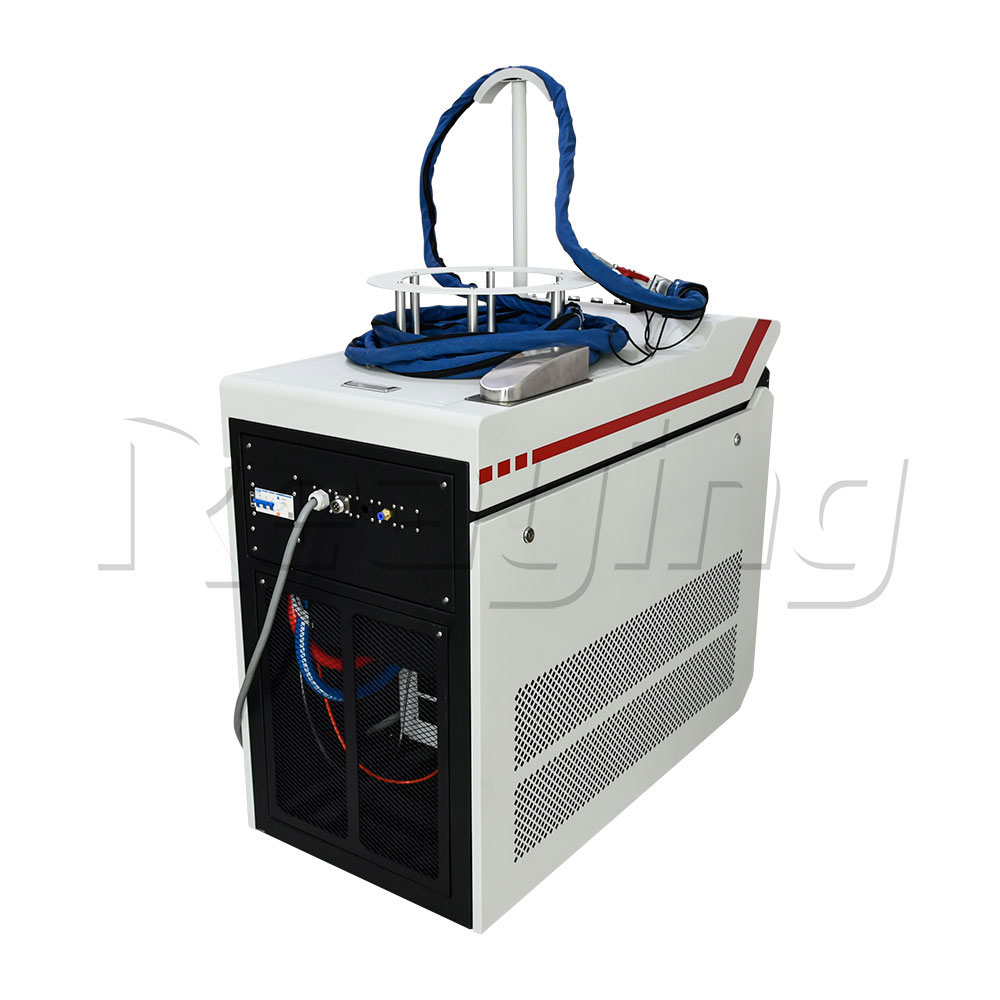

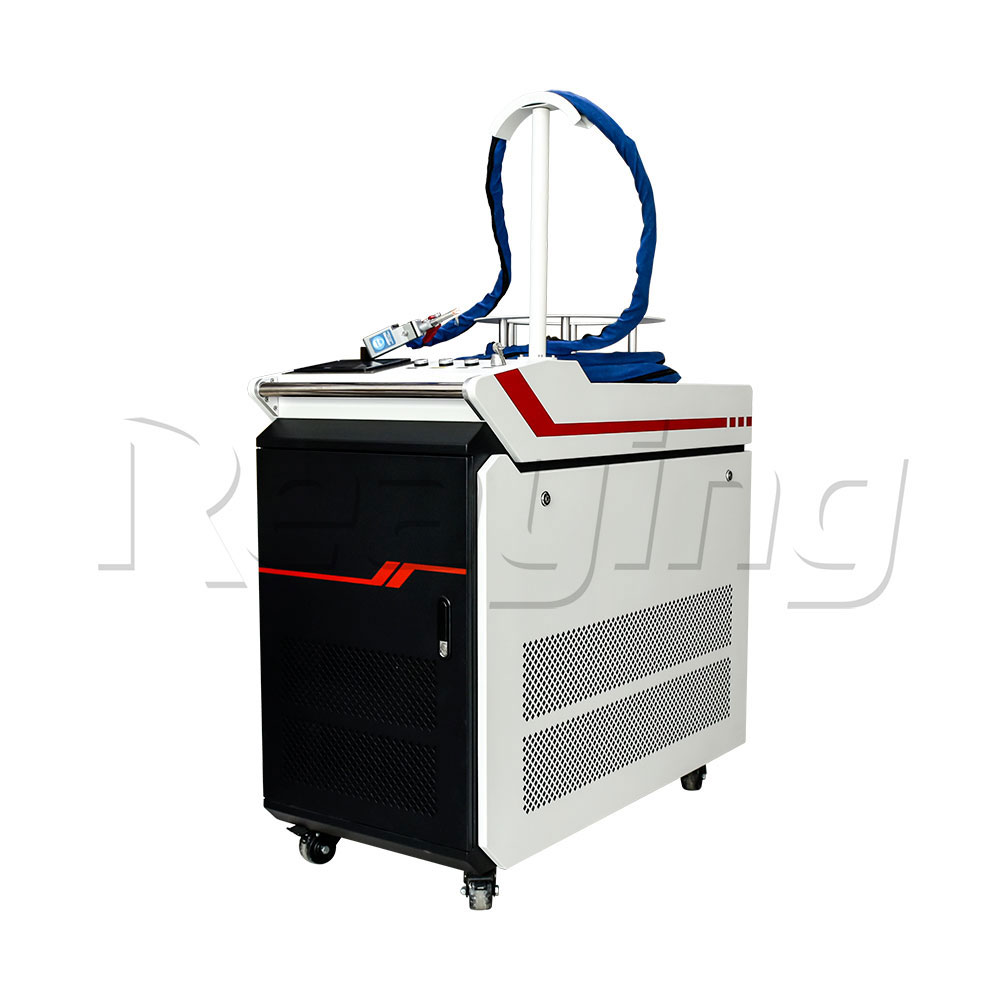

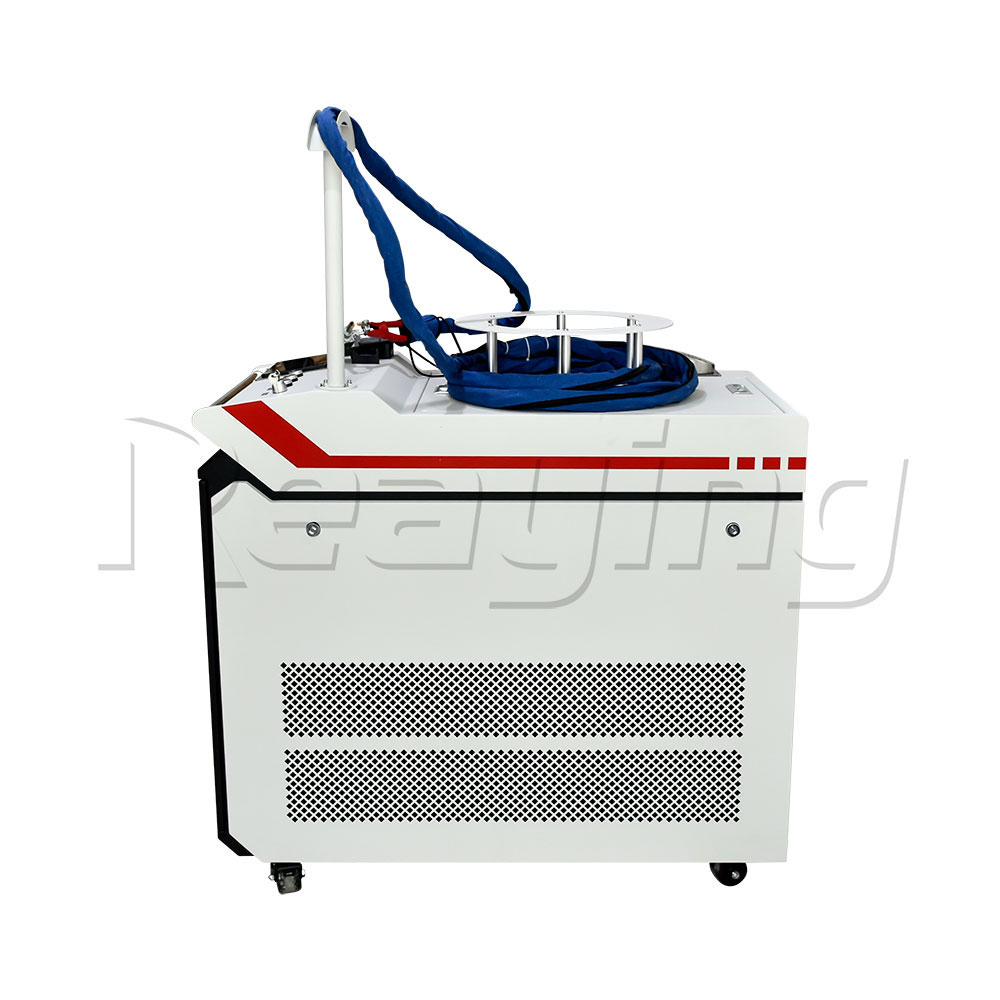

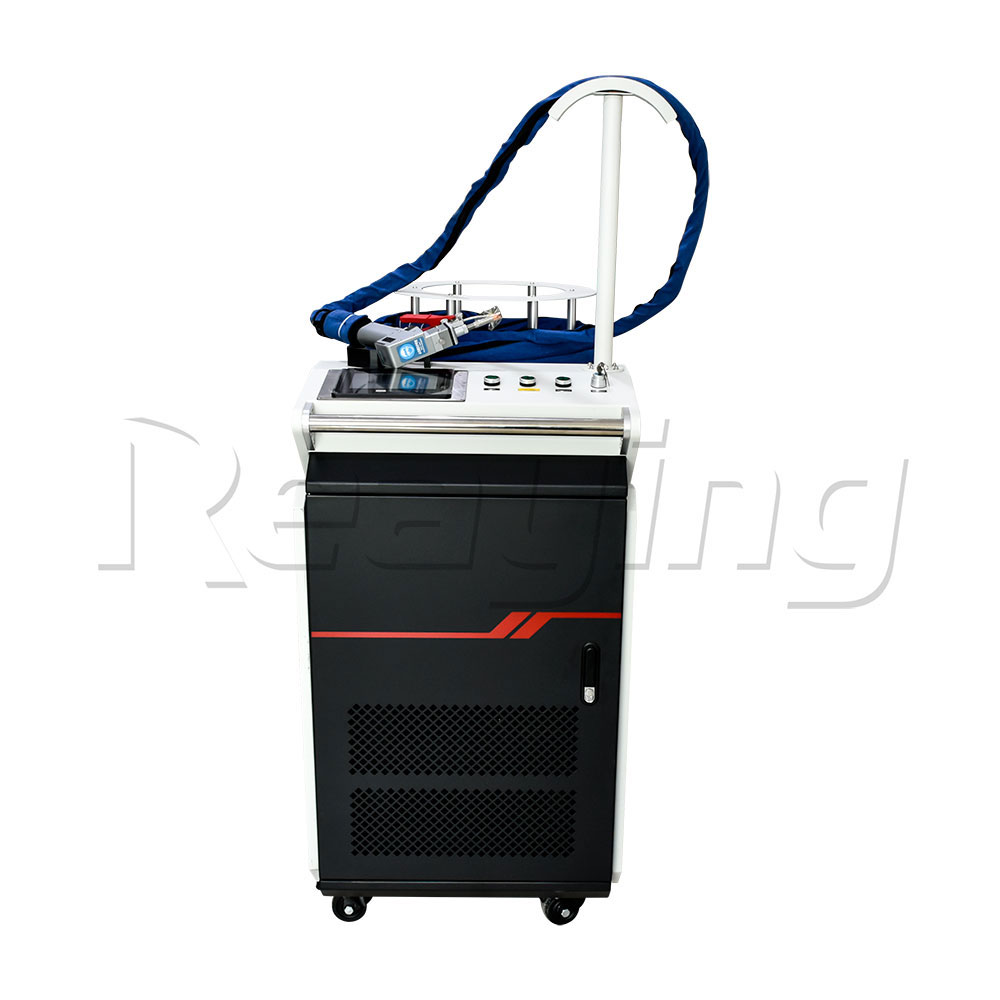

Continuous Hand-Held Laser Cleaning Machine for Rust Removal
Laser cleaning is mainly divided into: continuous laser cleaning and pulsed laser cleaning

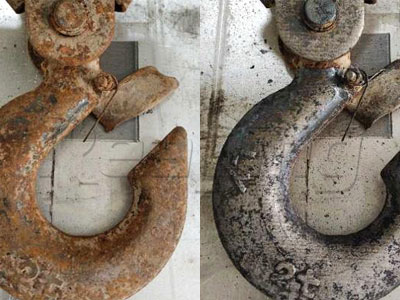

1. Continuous laser cleaning: mainly for the cleaning of oxides (rust, etc.) oil stains on the surface of metal objects.
Advantages: strong energy and high efficiency.
Disadvantages: The surface material of the object will be slightly damaged.
2. Pulse laser cleaning: mainly for the cleaning of metal and some non-metal surface contamination and oxides.
Advantages: good effect, not much damage to the surface of the object. It has strong practicability and can guarantee the precision of precision instruments.
Disadvantages: weak energy, low work efficiency, high price.
Model:
RY-CL50
Function:
Metal Clean
Input Voltage:
Custom Made
Laser Power:
1000W / 1500W / 2000W
Laser Source:
Genuines Raycus
Working Area:
Without
Customized Laser Cleaning System

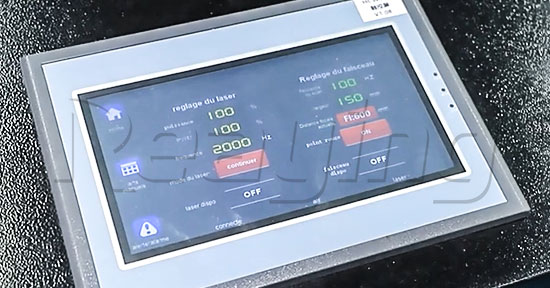

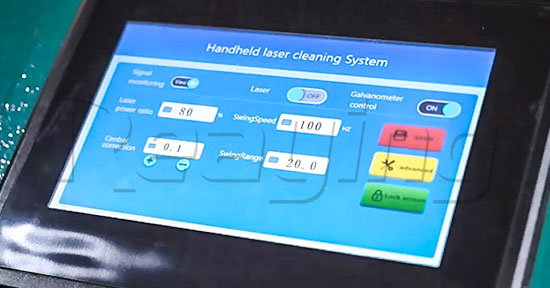

The operation panel of the handheld laser cleaning machine is mainly composed of a touch screen and operation buttons. The operation interface can set parameters such as laser power, frequency, scanning line width and scanning speed. The parameter display is concise and clear, the operation is simple, and the human-computer interaction is friendly.

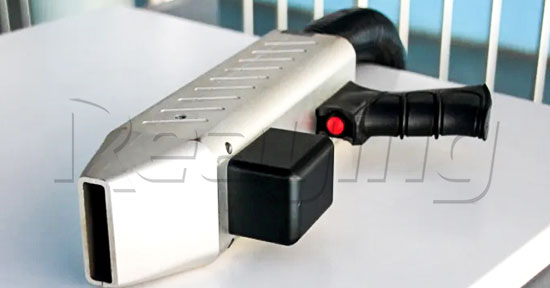

Laser head
1. The internal design is smart, and the internal structure is completely sealed, which can avoid dust pollution of the optical part.
2. The shape is light and the ergonomic design method is adopted to make the grip feel comfortable; it is easy to grasp with one hand, and the operation is simple and easy to use.
3. The protective lens adopts a drawer structure, which is easy to replace.
4. The scanning speed is fast and the production efficiency is high.

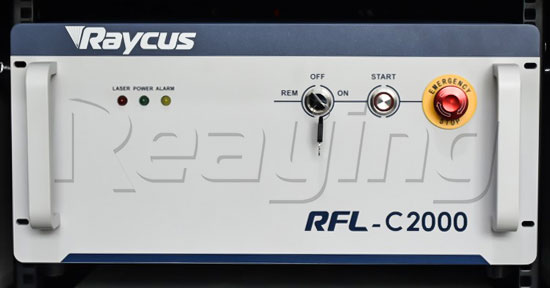

Laser Source
It has the characteristics of high average power, high single-pulse energy, square or circular homogenized spot output, convenient use and maintenance, etc. It is an ideal choice for industrial applications such as mold surface treatment, automobile manufacturing, shipbuilding industry, petrochemical industry, rubber tire manufacturing, etc. .
Water chiller
Using built-in water cooler, small size, strong compatibility, stable cooling performance, energy saving and power saving. It has a variety of alarm protection functions: compressor delay protection; compressor overcurrent protection; water flow alarm; high temperature/low temperature alarm.
Technical Parameters
| Model | RY-CL1000 |
|---|---|
| Power | 1000W, 1500W, 2000W |
| Laser Type | Continuous laser |
| Applicable Material | Stainless Steel, Carbon steel, Aluminum, Metal |
| Working width | 10-80mm/80-150mm optional |
| Laser wavelength | 1060-1080nm |
| Single pulse energy | 100mj@20Khz |
| Frequency | 20-50Khz |
| Pulsed width | 120-160ns |
| Laser Source Brand | IPG, Raycus, JPT, MAX |
| Warranty of core components | 2 years |
| Cooling method | Water cooling |
| Support language | English, Chinese, Japanese, Korean, Russian, Spanish |
| Laser power range | 10-100% |
| Dimension(L*W*H) | 1350mmX750mmX1450mm |
| Input Power | 380V/220V, 50/60H |
| Weight (KG) | 300KG |
