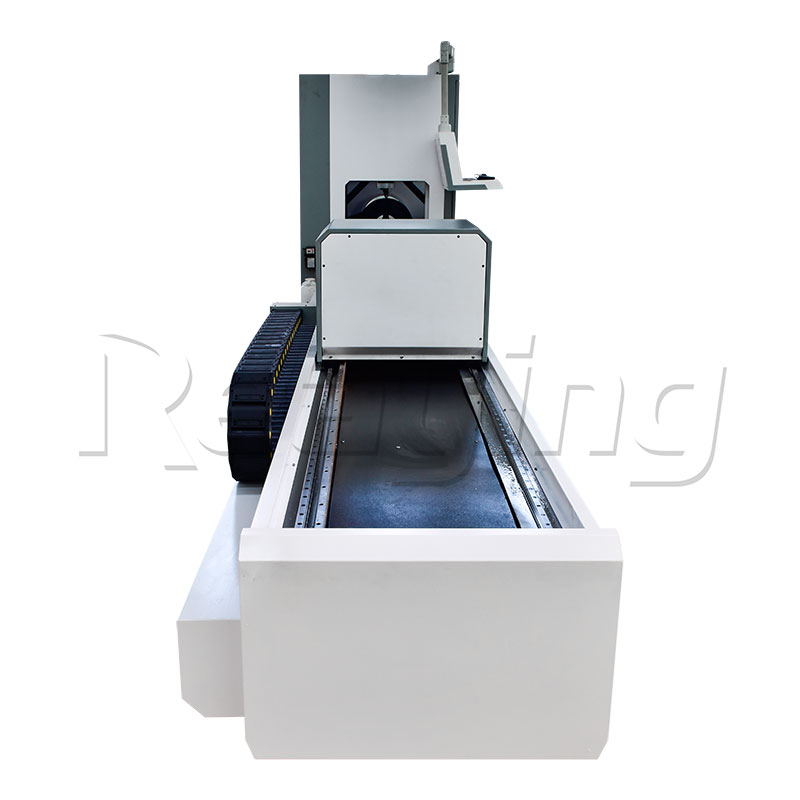

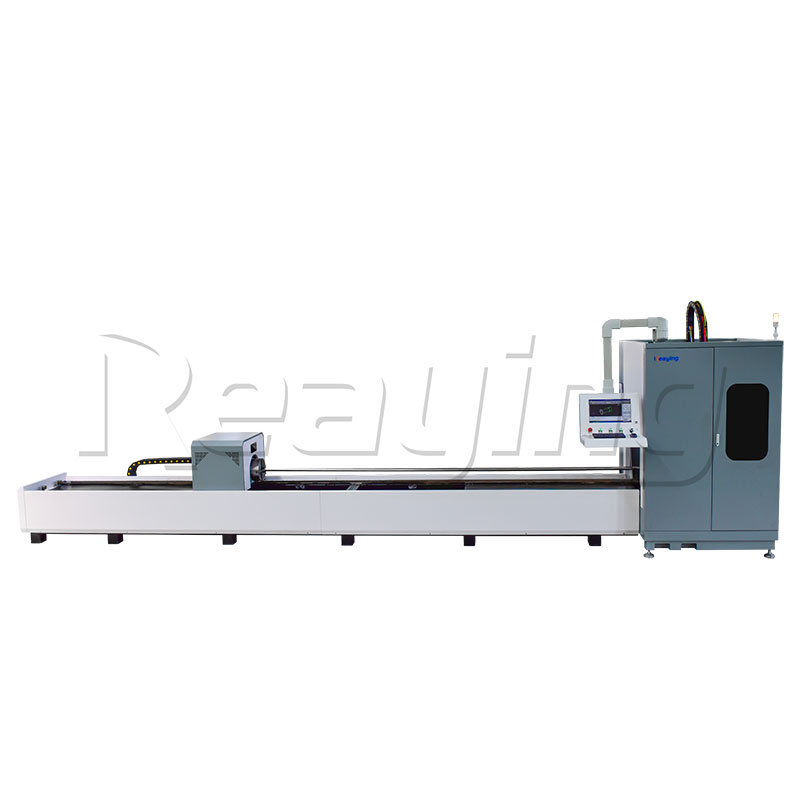

CNC Fiber laser tube&pipe cutting machine for stainless steel carbon steel

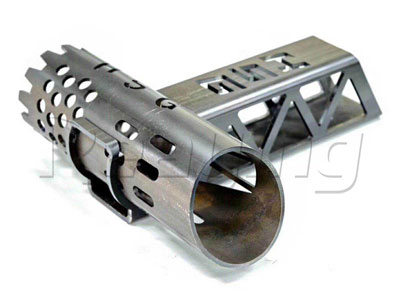

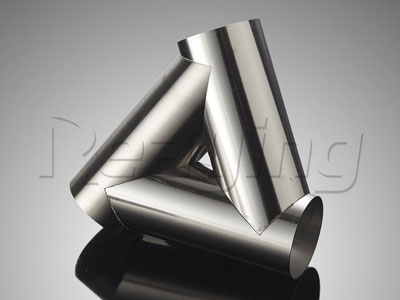

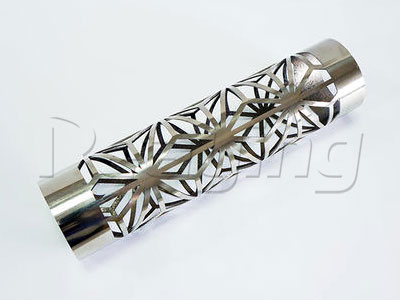

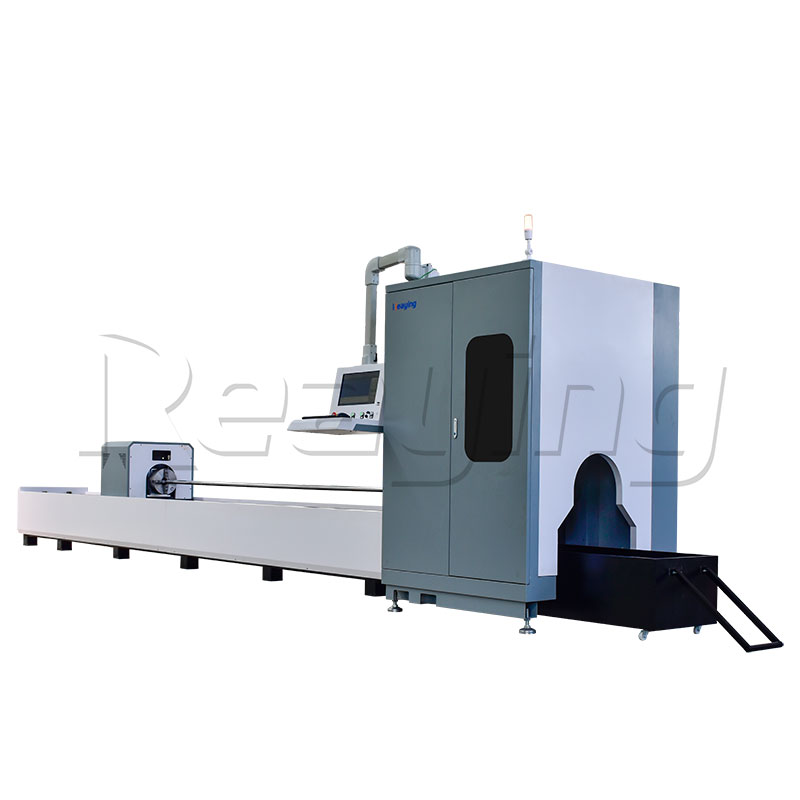

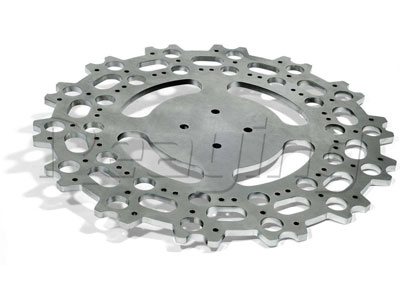

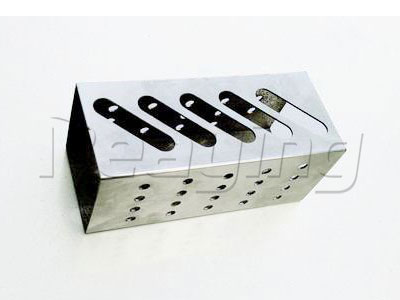

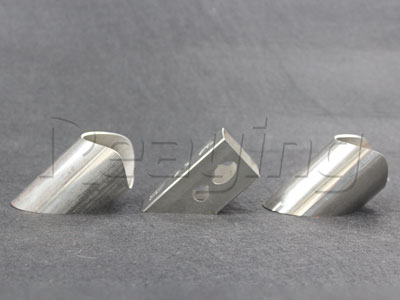

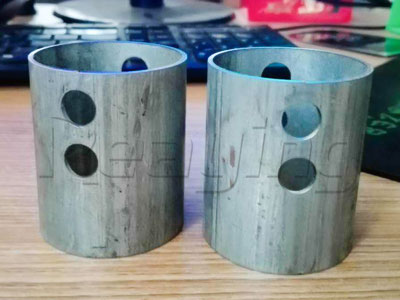

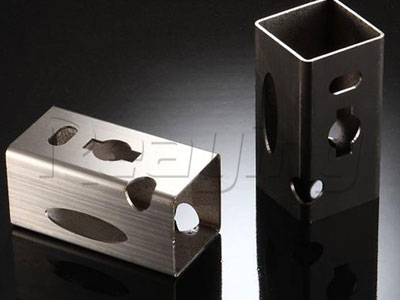

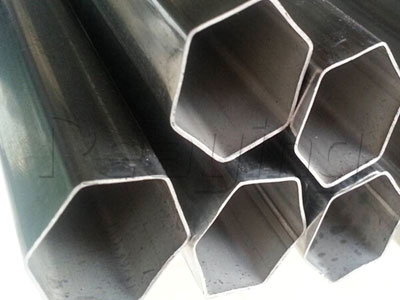

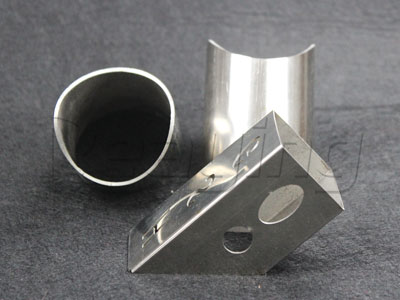

RY-L6000FT pipe cutting machine is professional in cutting round pipes, rectangular pipes and other standard pipes, as well as non-standard pipes (need nesting software). This machine is equipped with CYPTUBE professional pipe cutting operating system, which is easy to operate, high precision and has powerful function. It is suitable for cutting all kinds of profiles. RY-L6000FT is widely used in sports equipment, oil pipelines, chemical equipment and other industries. Can cut carbon steel, stainless steel, aluminum, brass and other materials. The cutting length of machine are 3 meters, 6 meters(optional), the maximum processing diameter of the round pipe is 220mm, and the maximum processing diameter of the rectangular tube is 155mm. The processing length and chuck diameter can be customized according to customer requirements.
Model:
RY-L6000T
Function:
Cutting
Input Voltage:
Custom Made
Laser Power:
1000W-12000W optional
Laser Source:
Genuines Raycus
Dimension:
8060mm x 1470mm x 2580mm

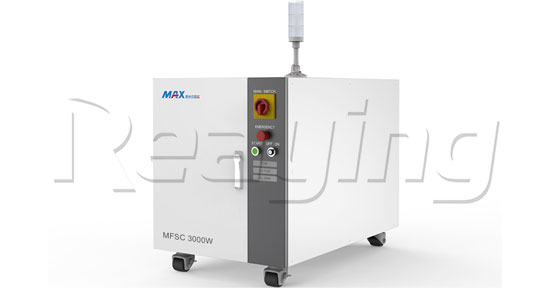

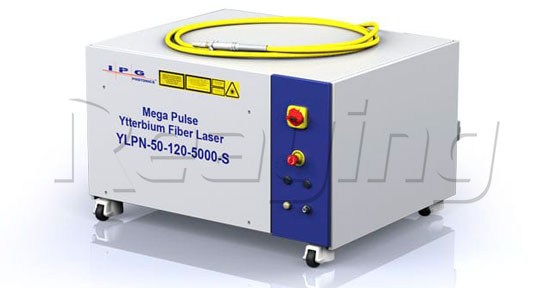

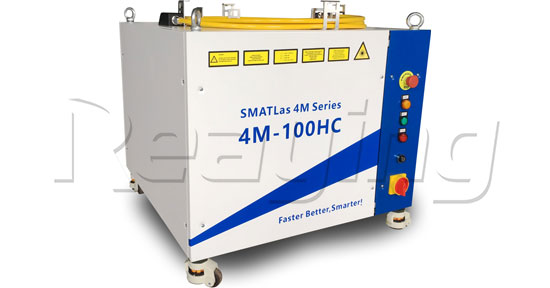

Laser source:
IPG/Raycus/MAX/GW
RY-L6000FT equipped with internationally renowned brand fiber laser source. Which advantages are:
1. Ultra-high output power and electro-optical conversion efficiency
2. The internal layout of the fiber laser source is scientific and compact, and the volume is smaller and convenient to move.
3. Lower power consumption and maintenance costs, continuous and stable working
4. The cutting surface is smoother, the slit is narrower, and the heat affected zone is smaller
Swiss Raytools brand auto-focusing cutting head, good horses should be equipped with a saddle
It adopts imported closed-loop motor, high-speed perforation and cutting of various material thickness plates, and the repeating precision is 0.01mm.
Automatically find the best focal length instead of manual focusing, the adjustment range is -10-+10mm. The focusing speed reaches 400mm/s, more efficient
IP65 dust-proof design, fully protect internal optical components and extend service life.
Built-in collimating lens focusing lens double water cooling structure, reducing the temperature of the cutting head and prolonging the service life of the cutting head.

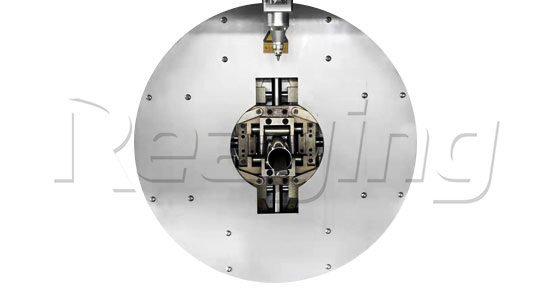

Front and rear double pneumatic clamping chuck
Clamping pressure adjustable, the clamping range is wider and clamping force is larger. Non-destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. Higher transmission efficiency, long working life and higher working reliability.
Japan imported YASKAWA brand dual servo motor synchronous drive system, stronger power, stable and reliable
It has the highest amplifier responsiveness in the same industry, which greatly shortens the setting time, realizes acceleration and deceleration at high speed, and has fast response.
Low heat, low noise, high speed and high precision.
Strong anti-interference ability and strong anti-overload capability.
There is automatic adjustment mode, if the effect is not good, it can be adjusted more conveniently.

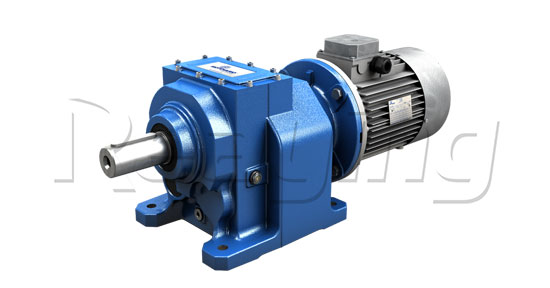

Adopting French brand MOTORVARIO reducer, adopting helical gears, low noise, high rigidity and high assembly precision
Mute: Smooth, quiet operation with anti-vibration, low-noise planetary gearbox construction and helical gears
High precision: High precision, backlash 0.05 (3 points), with output shaft, free to install, high rigidity.
High torque: The MOTOVARIO uses the body steel to directly machine the body, and exerts a large output torque in a compact and sturdy body.
Easy maintenance: MOTOVARIO uses high-grade lubricating oil with less friction loss to improve the durability of the lubricating oil, so there is no need to replace the grease during the life of the product.

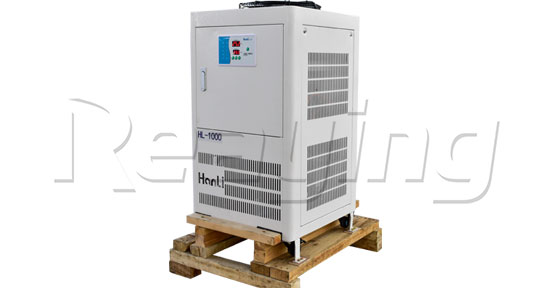

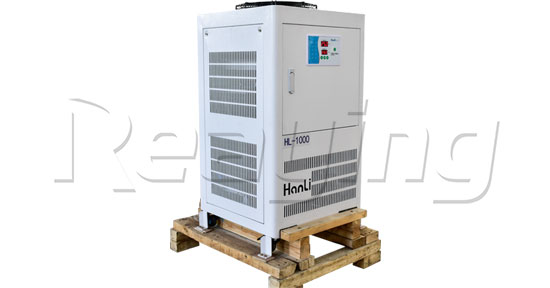

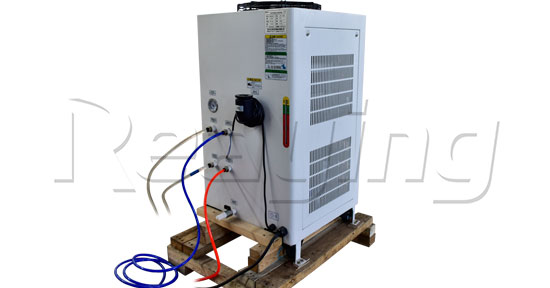

Hanli brand dual temperature dual control water chiller
Adopting new imported famous brand compressors and high-flow high-lift S&A pumps, safe and environmentally friendly, saving electricity and durability
Adopt environmentally friendly refrigerant, high cooling capacity and stable working performance
Temperature control accuracy of ±1 °C
With a variety of protection alarm functions, compressor delay protection, compressor over-current protection, water flow alarm, high temperature and low alarm, all-round protection of equipment normal operation
Double pump double temperature to meet different temperature requirements of laser source and laser head
TAIWAN HIWIN quality transmission system
TAIWAN HIWIN grinding helical gear, high precision and durability
TAIWAN HIWIN linear guide, high speed, high load, high rigidity and high precision. The slider has four-direction load characteristics and automatic self-aligning function, which can absorb the assembly error of the mounting surface.
German YYC brand grinding level rack
Grinding level accuracy cumulative error 0.015/300mm (arbitrary 300mm); overall pitch line error FP=0.03/1000MM
German standard grade 5 precision, tooth surface quenching and grinding all sides;
Heat treatment type / non heat treatment type, the same modulus can have multiple strengths;
It has a square/circular appearance and is easy to integrate and use;
A variety of materials: alloy steel, stainless steel, engineering plastics (POM)

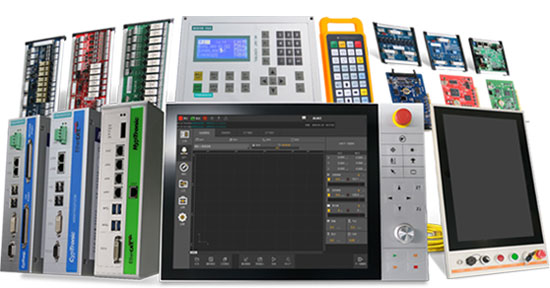

Metal pipe cutting, FSCUT5000 laser cutting system is more professional.
Support three levels of perforation, segmentation or progressive combination
Support flight cutting, leapfrog, compensation, introduction of lead wires, micro-joining, pre-perforation, film cutting and other processes
Supports capacitive edge finding, electric focusing, double exchange workbench, automatic typesetting, power failure memory, step back and other advanced function modules
Positioning accuracy 0.001mm, repeat positioning accuracy 0.003mm, maximum speed 150m/min, maximum acceleration 1.5G
Support high-precision/high-efficiency cutting of square tube/round tube/runway type and elliptical stretching tube and angle steel/channel steel
DSP wireless controller, easy to operate, ready to respond to unexpected situations, providing a strong guarantee for safe production
Technical Parameters
MODEL | RY-L6000T |
|---|---|
Laser source | IPG/Raycus/MAX |
Laser Wavelength | 1080±5 nm |
Laser power | 1000W-12000W optional |
Range of diameter | φ20-φ220mm |
Chuck clamping type | Double manual clamping or double pneumatic clamping |
X axis | 250mm |
Y axis | 6000mm |
Z axis | 200mm |
Max speed of W axis | 110r/min |
Max cutting speed of X、Y axis | 105m/30m/min |
Max acceleration of X、Y axis | 0.8G |
Positioning Accuracy | ≤ ±0.025mm/m |
Re-positioning Accuracy | ≤±0.02mm/m |
Control system | CYPTUBE FSCUT3000 |
Weight | 3500KG |
Dimension | 8060mm x 1470mm x 2580mm |
