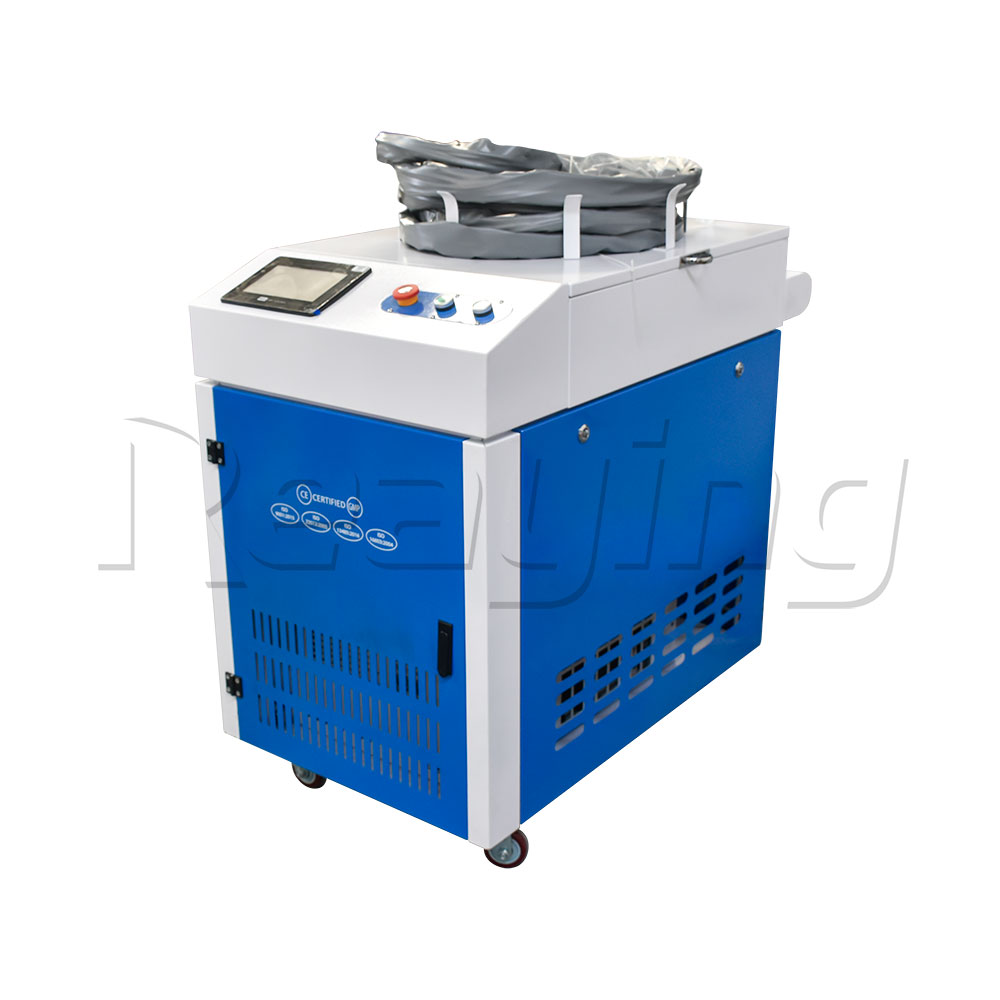

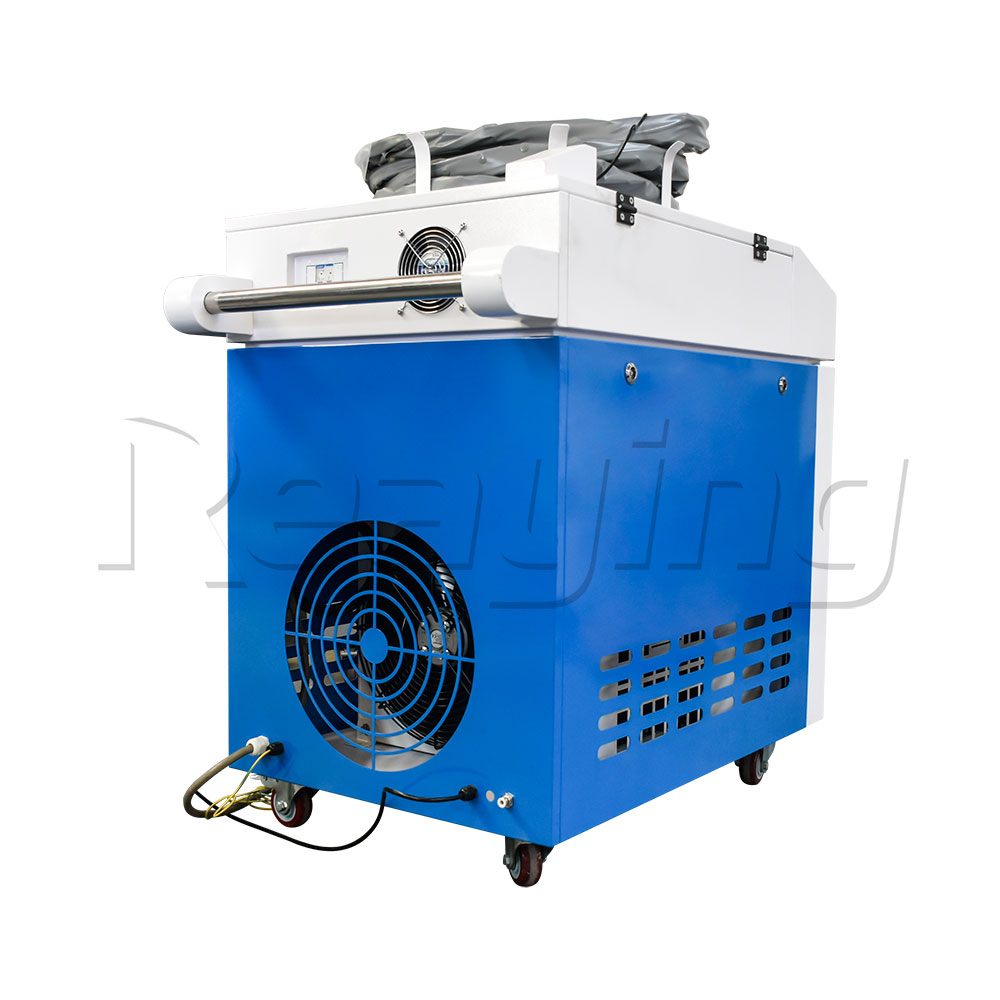

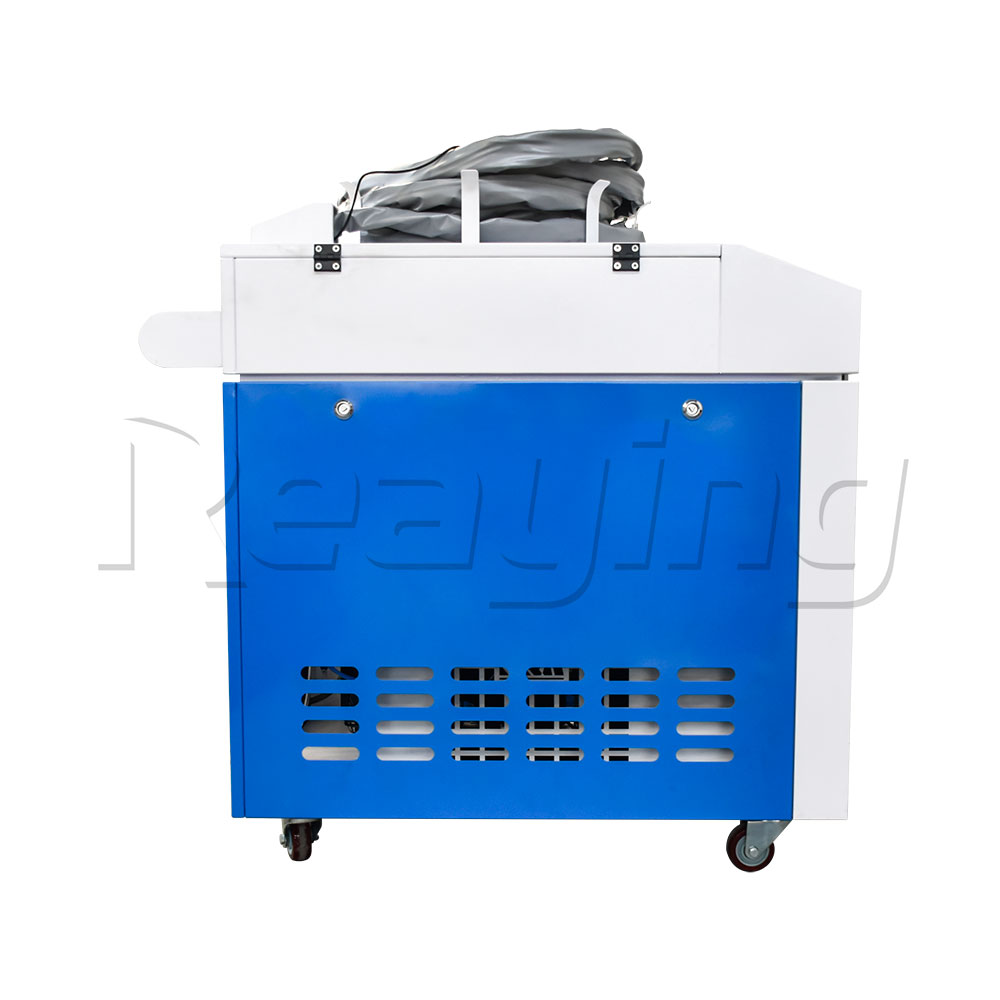

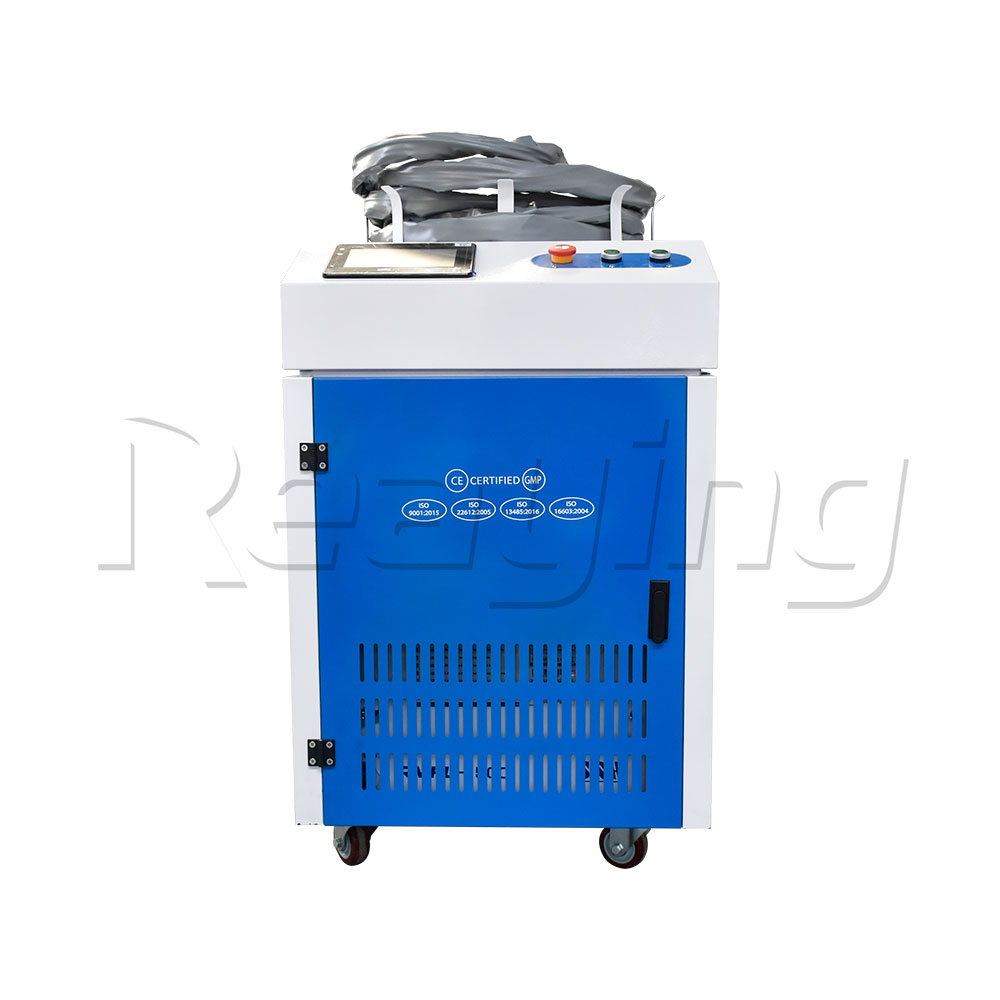

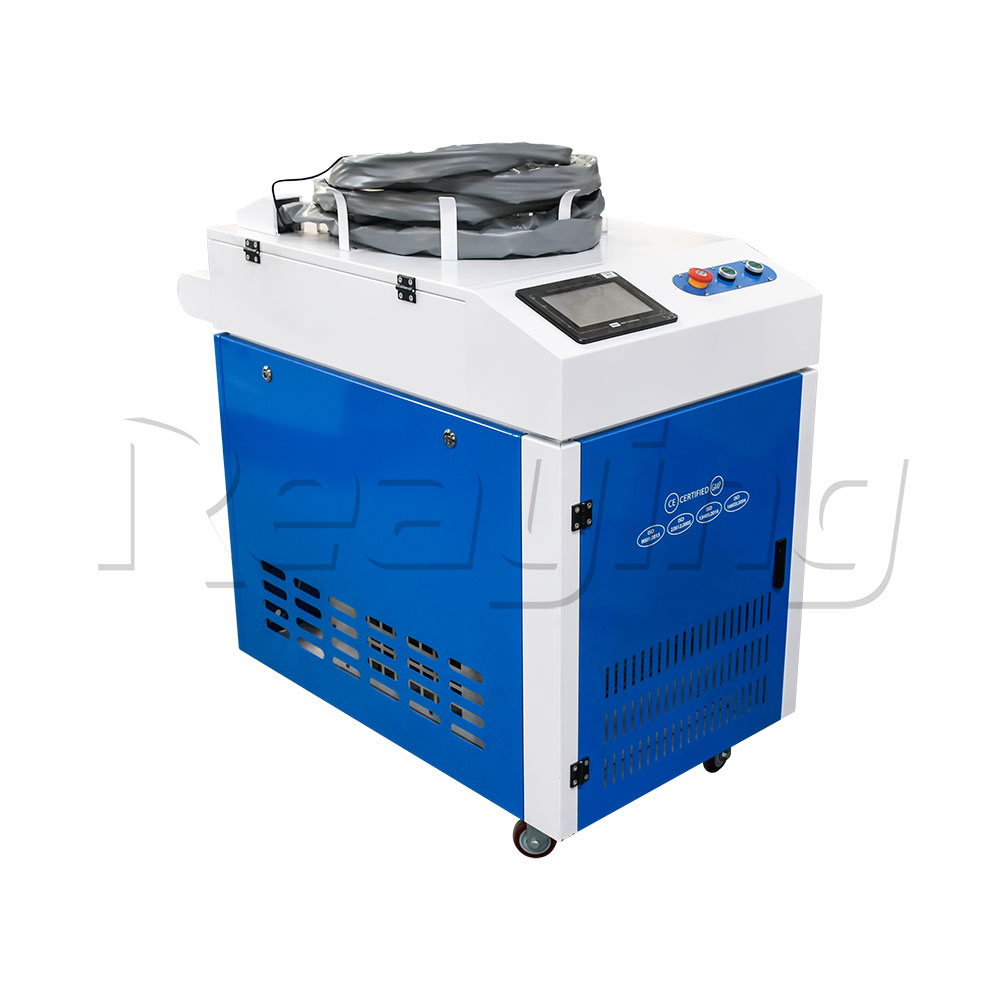

3 in 1 Handheld Laser Welding Cleaning Cutting Machine

High efficiency, 3 in 1 Laser Welding, cutting and cleaning

Easy operate, mobile and Flexible Can beused Both indoors and outdoor, Convenient for work

Laser Welding

With a whole new generation of Continous Fiber Laser Source built-in, the peak power out increased 30% which allows you to get faster welding speed and deeper penetration for various process requirements

Auto Aeeder

*Available to work combining with welding wires.

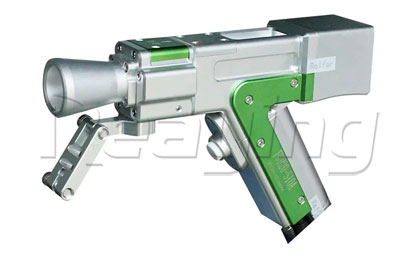

Laser Cleaning

With the intelligent system provided by Reaying Laser Welder, you can use the laser cleaning function by just simply switch in a modes rapidly and install the exclusive laser cleaning accessories kits comes with the machine.

Laser Cutting

By switching accessories and reserved parameter settings with simple steps you can cut metal sheets by Reaying Laser Welder anywhere anytime.

Model:

RY-3IN1

Function:

Welding & Cleaning & Cutting

Input Voltage:

Custom Made

Laser Power:

1000W-3000W

Laser Source:

Raycus / Max / JPT / DWT

Working Area:

Without

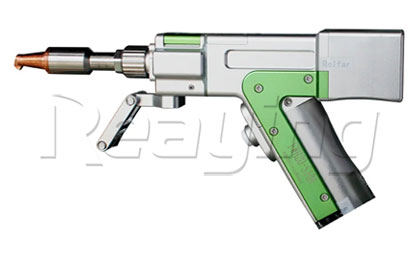

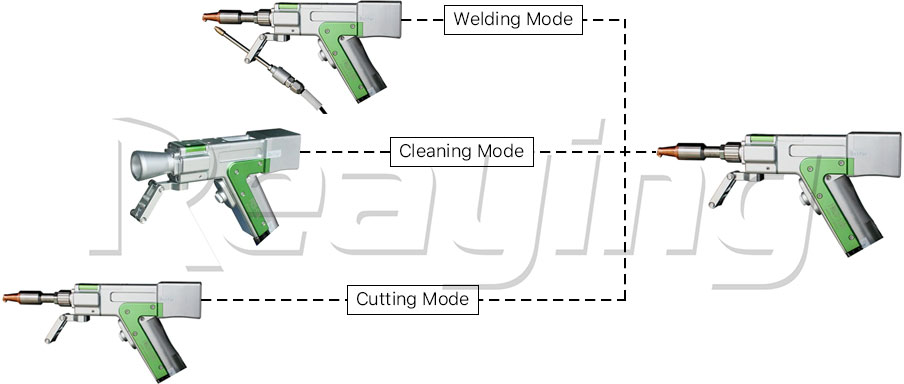

1 laser gun with 3 functions

360°flexible movement, light and flexible which can realize welding of any part of the work piece. Swing welding head for easy operation, efficiency increased by 2-3 times. Pure copper welding nozzle.

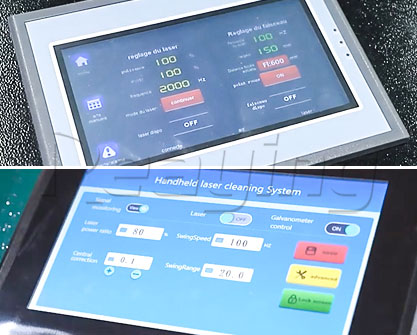

Control system

Intelligent touch system, simple interface operation
◎ Just set the laser power, scan width&speed
◎ Up to 9 sets of technical data can be saved
◎ Spot and continuous welding modes
◎ Extensive selection of technologies, choose between zoom mode or gap mode in spot welding mode
◎ Chiller alarm, safety grounding, laser source and other multiple protection mechanism alarms

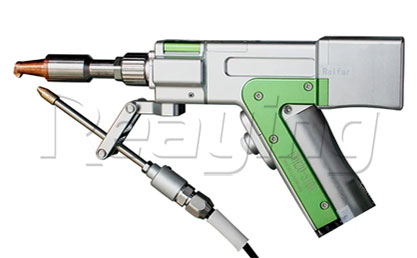

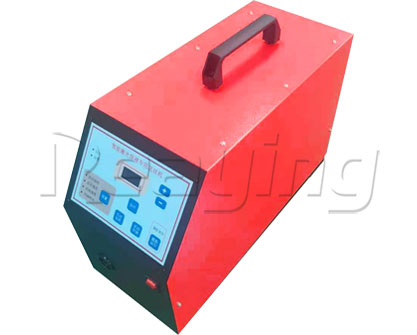

Automatic Wire Feeder

In actual welding, sometimes part fluctuations and fixture errors often cause various welding defects. After adding wire feed for welding, the laser beam is easy to guide and focus, which can realize welding of any complicated shape, with high degree of automation, fast welding speed, high production efficiency, and stable and reliable processing quality.

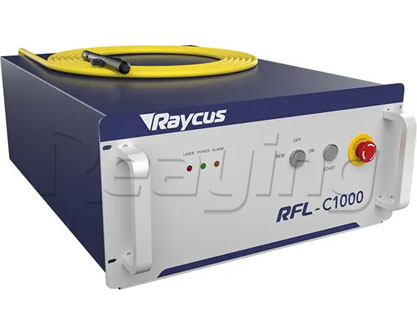

Well-knowen brand laser

◎High electro-optical conversion efficiency
◎Strong anti-high anti-reaction ability
◎More stable beam quality
◎Maintenance-free operation

Meters Fiber

Extended welded fiber can achieve ultra-long distance operation can reach a wide distance, flexible and convenient.

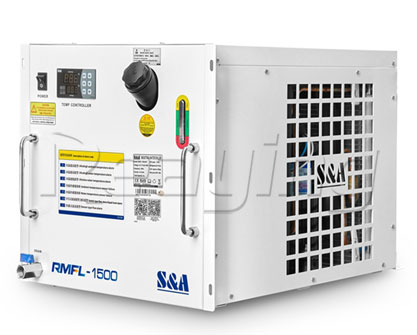

Laser water cooler

Stable performance, comes with chiller. Intelligent temperature control, rapid cooling, stable performance.

Cost-free Accessories

A variety of accessories are complete, and there is no worried about the lack of accessories.

Technical Parameters

Laser Power 1000W 1500W 2000W 3000W
Laser Source Fiber Laser Manufactured by Raycus / Max / JPT / DWT
Wavelength(nm) 1064 - 1080
Laser Mode Continues
Length of Fiber 5-10m (customized)
Welding Width 0.2-5mm (adjustable)
Laser Preview Integrated Red Light Preview
Cooling Water Cooling
Language Chinese / English / Russian / Korean / Vietnamese
Power Supply AC 220V, 50Hz/60Hz AC 380V, 50Hz/60Hz
Parameter Setting Touch Panel
Welding Materials Carbon Steel, Stainless Steel, Aluminum, Brass, Alloy etc.
Welding Speed 0-120mm/s (adjustable)

Distribution of welding effect

It has high stability, less maintenance, more energy saving, fast welding speed and high efficiency and other advantages. No deformation, no blackening, large welding depth, firm welding, no need to grind, simple operation.

Cleaning effect display

Metal surface rust removal, paint stripping treatment, oil cleaning, painting, coating cleaning, welding surface, spraying surface Dispose. Small laser cleaning head, light and convenient, can work for a long time, power supply can run. No consumables, no damage, no pollution

Cutting effect display

As a three-in-one product, it will meet the cutting requirements of welding materials, and the specific cutting speed is simple and convenient features.
